AXIS C1310-E Mk II Network Horn Speaker (02813-001) – Outdoor IP Horn Speaker with PoE, 121 dB Output & Two-Way Audio
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

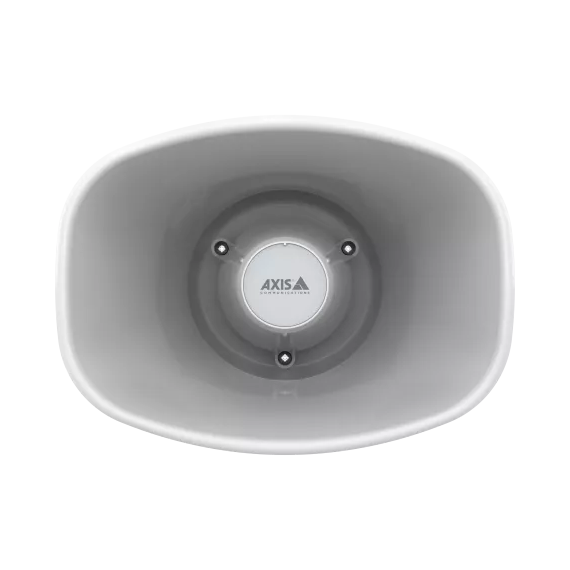

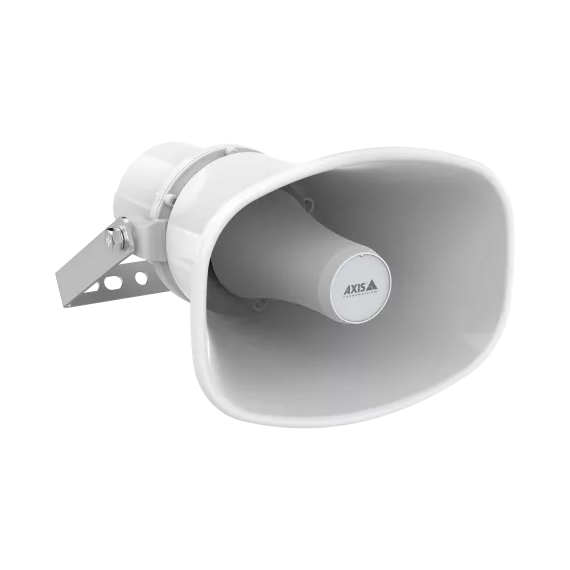

AXIS C1310-E Mk II Network Horn Speaker (02813-001) – Outdoor IP Horn Speaker with PoE, 121 dB Output & Two-Way Audio.
The AXIS C1310-E Mk II Network Horn Speaker (02813-001) is a rugged IP-based audio device designed for security alerts, live announcements, and deterrence in outdoor environments. It delivers extremely loud and clear sound output up to 121 dB, making it suitable for large open areas such as parking lots, industrial sites, and perimeter security zones. With built-in amplifier, DSP processing, and PoE connectivity, it operates as an all-in-one unit that integrates directly with surveillance and VMS systems. It also supports two-way audio communication and remote health monitoring for reliable operation in mission-critical installations.
Key Features:
121 dB high-output horn speaker for long-range coverage
Built-in Class-D amplifier with DSP audio processing
PoE (Power over Ethernet) for single-cable installation
Supports live announcements and pre-recorded messages
Two-way audio with built-in microphone
Remote health monitoring and speaker self-test
IP66/IP67 weather-resistant design for outdoor use
Integrates with VMS, SIP, and Axis Audio Manager systems
Designed for perimeter security and deterrence applications
Scalable and easy network-based deployment
