AXIS C6110 Network Paging Console (02709-001) – 7” IP Paging & Public Address Control Console with SIP & Two-Way Audio
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
AXIS C6110 Network Paging Console (02709-001) – 7” IP Paging & Public Address Control Console with SIP & Two-Way Audio.

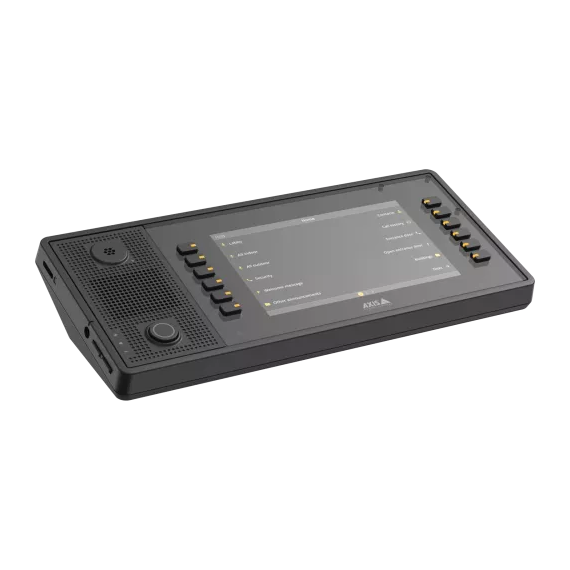

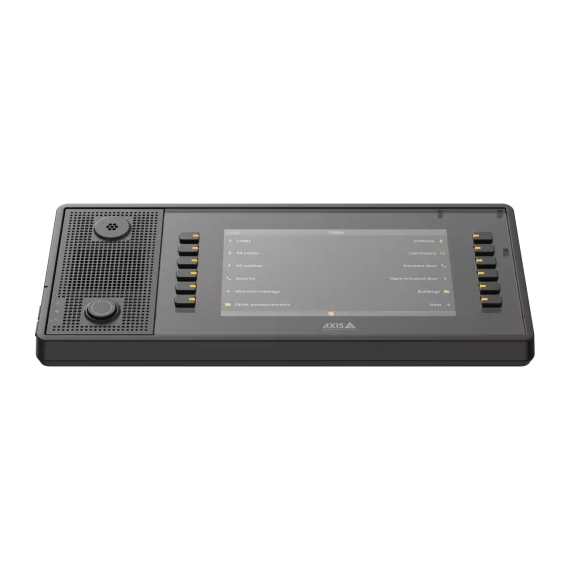

The AXIS C6110 Network Paging Console (02709-001) is a professional IP-based control unit designed for managing public address and network audio systems. It enables users to make live or pre-recorded announcements, manage multiple audio zones, and communicate via two-way audio using SIP/VoIP integration. Featuring a 7-inch colour touchscreen, physical function buttons, and a built-in speaker and microphone system, it provides intuitive operation for daily paging tasks.
With PoE support, the device is easy to install and can be used in offices, schools, retail stores, transport hubs, and industrial environments for efficient communication and emergency messaging.
Key Features:
7-inch colour display with intuitive paging interface
Supports live and pre-recorded announcements
SIP/VoIP integration for network communication
Two-way audio with built-in speaker and beamforming microphone
Manage multiple audio zones and contact groups
PoE (Power over Ethernet) for simple installation
Web-configurable interface for customisation
Supports an external microphone (gooseneck accessory)
Physical buttons for quick navigation and paging actions
Suitable for enterprise public address systems
Wall or desktop mounting flexibility
Built on AXIS open platform for IoT integration
