AXIS Camera Station S2216 Mk II 8TB (02809-003) – 16-Channel Rack NVR with Integrated PoE Switch
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

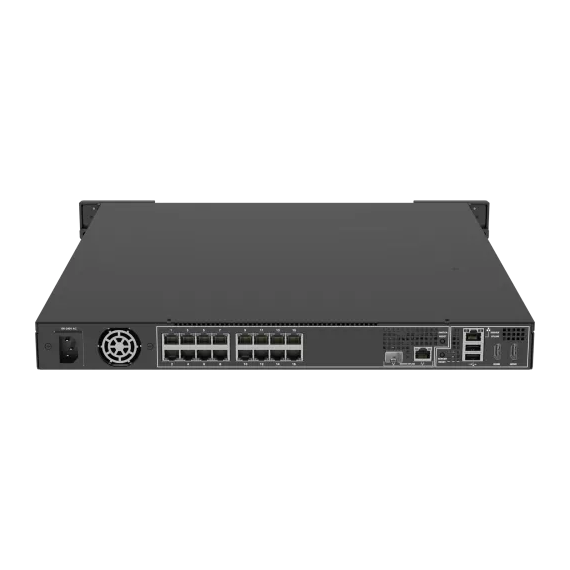

AXIS Camera Station S2216 Mk II 8TB (02809-003) – 16-Channel Rack NVR with Integrated PoE Switch
The AXIS Camera Station S2216 Mk II 8TB (02809-003) is a powerful all-in-one rack-mounted video management and recording appliance designed for professional surveillance systems. It includes 16 AXIS Camera Station Pro licenses, an integrated 16-port PoE switch, and 8TB of preinstalled storage, making deployment fast and efficient. Built for commercial and industrial installations, it supports advanced AI applications, RAID storage configurations, and enterprise-level cybersecurity features including TPM 2.0 and secure boot. Its scalable architecture and integrated management tools make it ideal for large security environments requiring centralized video recording and monitoring.
Key Features
16-channel professional surveillance recorder
Integrated 16-port PoE+ switch
Includes 16 AXIS Camera Station Pro licenses
8TB preinstalled surveillance-grade storage
Rack-mounted 1U appliance design
Supports AI applications such as Smart Search 2
RAID 0 / 1 / 10 support for storage redundancy
Two free HDD bays for storage expansion
Built-in cybersecurity with TPM 2.0 and secure boot
Windows 11 IoT Enterprise LTSC preinstalled
Supports AXIS Audio Manager Pro licenses
Designed for enterprise and industrial surveillance systems
