AXIS F2135-RE Fisheye Sensor (Ultra-Wide 1080p Modular Camera Sensor)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

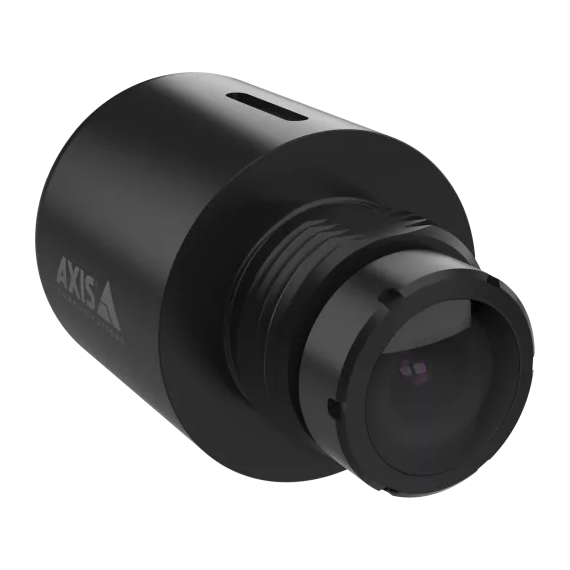

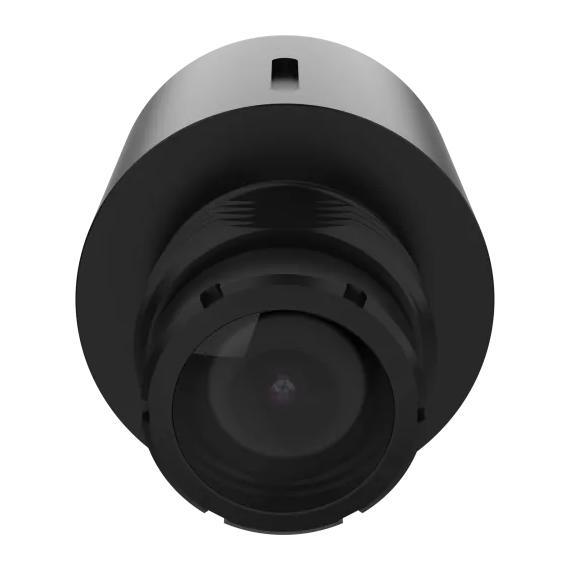

AXIS F2135-RE Fisheye Sensor (Ultra-Wide 1080p Modular Camera Sensor)
The AXIS F2135-RE Fisheye Sensor is part of the Axis modular camera system and works with compatible F-series main units. It features a 1/2.8" CMOS sensor with a fixed 1.98 mm lens that provides a 185° horizontal view, capturing extremely wide scenes with minimal blind spots. Supporting up to 1080p at 60 fps and enhanced low-light performance, it is built for demanding environments such as public transport, industrial machines, and outdoor installations. Its rugged design supports extreme temperatures and high protection ratings (IP66/IP67/IP6K9K), ensuring reliable operation in harsh conditions.
Key Features:
2MP (1920 × 1080) Full HD resolution
185° ultra-wide horizontal fisheye view
Fixed 1.98 mm lens for maximum coverage
Up to 60 fps at 1080p (high-frame-rate video)
Compatible with Axis F-series modular main units
Designed for discreet and flexible installation
Lightfinder & Forensic WDR support (via system)
Rugged construction for vibration-heavy environments
IP66/IP67/IP6K9K weather protection
Operating temperature approx. -40°C to +60°C
Ideal for vehicles, machines, and transport systems
