AXIS I8016-LVE Network Video Intercom (01995-001) – 5MP Outdoor Video Door Station with IR, SIP & Access Control
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

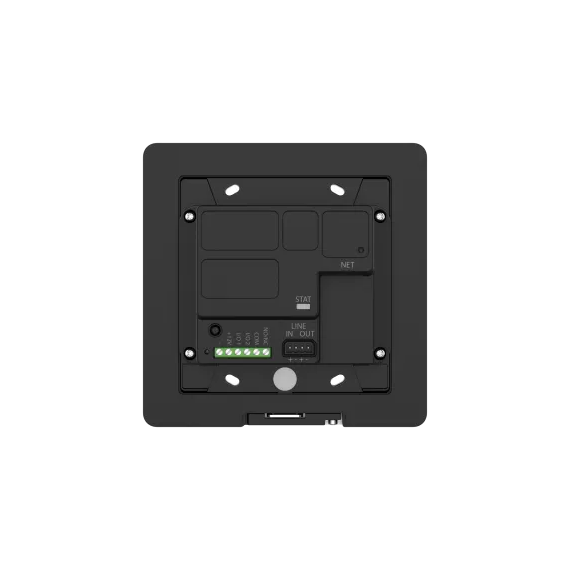

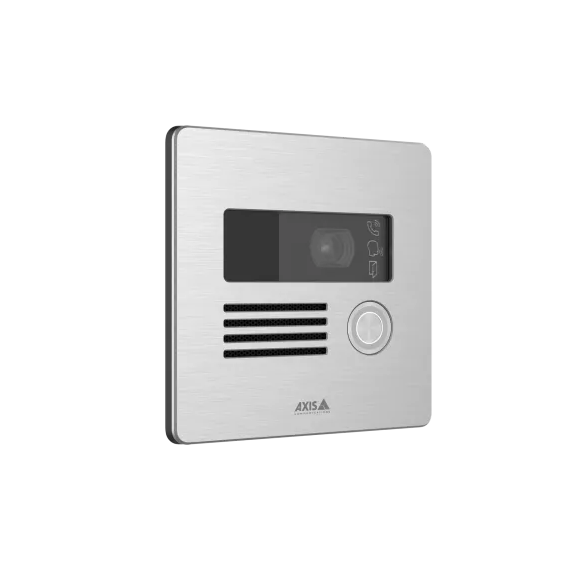

AXIS I8016-LVE Network Video Intercom (01995-001) – 5MP Outdoor Video Door Station with IR, SIP & Access Control.
The AXIS I8016-LVE Network Video Intercom is a professional door station that integrates video surveillance, communication, and access control in one unit. It delivers 5MP high-resolution video with a 140° wide field of view, ensuring clear visitor identification even in low-light or night conditions using built-in IR illumination.
The device supports full-duplex two-way audio with echo and noise cancellation, allowing clear communication between visitor and operator. It also includes SIP/VoIP support, relay outputs for door control, and integration with AXIS security systems.
Built for harsh environments, it features IP66/IP69 weather protection and IK10 vandal resistance, making it suitable for outdoor installation in demanding security applications.
Key Features:
5MP high-resolution network camera
140° wide-angle field of view
Built-in IR illumination for night surveillance
Full-duplex two-way audio (echo & noise cancellation)
SIP / VoIP integration support
Remote door entry control via relay output
Motion detection and event triggers
Edge storage via microSD card
H.264 / H.265 video compression with Zipstream
IP66 / IP69 weatherproof protection
IK10 vandal-resistant housing
PoE-powered (single cable installation)
ONVIF compatibility for VMS integration
Suitable for entrances, gates, and secure facilities
No reviews found
