AXIS M3057-PLR Mk II 6MP Outdoor Fisheye Network Camera (360° Panoramic View, IR, Transportation Ready)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
AXIS M3057-PLR Mk II 6MP Outdoor Fisheye Network Camera (360° Panoramic View, IR, Transportation Ready)

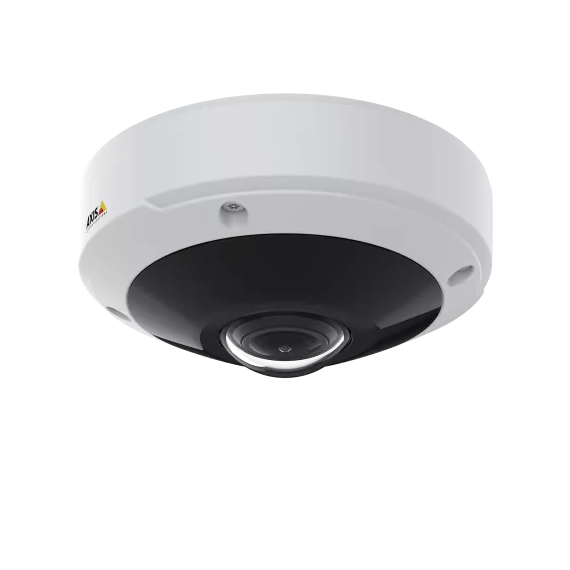

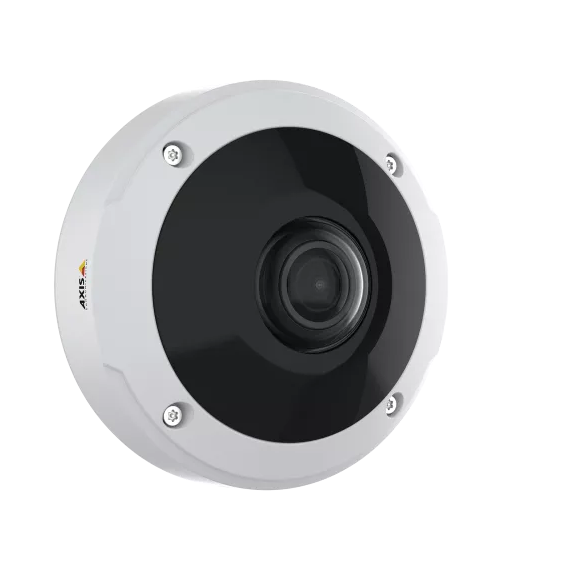

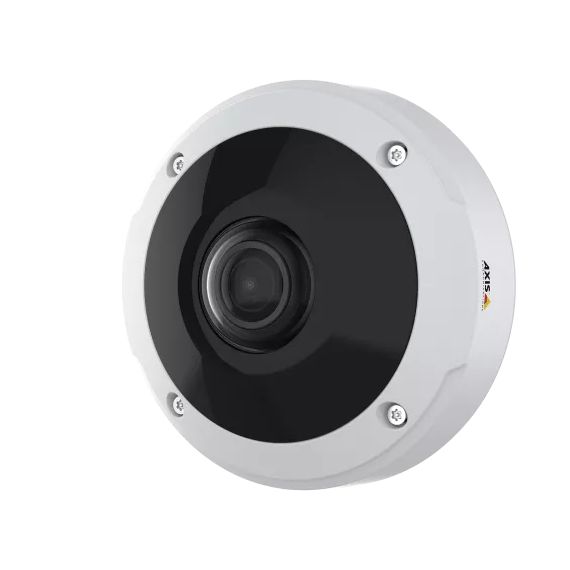

The AXIS M3057-PLR Mk II offers a full panoramic view from a single camera, reducing blind spots and minimising the need for multiple devices. Equipped with a 1/1.8" CMOS sensor and a 1.56 mm fisheye lens, it captures 6MP video at up to 60 fps with a 183° field of view. Designed specifically for buses, trains, and other demanding environments, it features built-in OptimizedIR, Lightfinder, Forensic WDR, and support for multiple dewarped views, including panorama, quad, corridor, and corner views. Its IP67, NEMA 4X, and IK10-rated housing ensures reliable operation in harsh outdoor conditions.
Key Features:
6MP resolution (2016 × 2016) panoramic imaging
Complete 180° and 360° overview
1.56 mm fixed fisheye lens
183° horizontal and vertical field of view
Up to 60 fps video streaming
Built-in OptimizedIR with night vision up to 20 m (66 ft)
Axis Lightfinder for excellent low-light performance
Forensic WDR for challenging lighting conditions
Multiple dewarped views (Panorama, Quad, Corner, Corridor)
Digital PTZ and ±180° digital roll
H.264 and H.265 with Axis Zipstream technology
MicroSD card support for edge storage
Transportation industry compliant (EN 50155 & EN 45545-2)
IP67, NEMA 4X, and IK10-rated rugged housing
PoE support for simplified installation
Built-in cybersecurity features and secure firmware
No reviews found
