AXIS M3088-V 8MP Indoor Fixed Mini Dome Camera (02375-001, Deep Learning, Wide Dynamic Range, Compact Design)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
AXIS M3088-V 8MP Indoor Fixed Mini Dome Camera (02375-001, Deep Learning, Wide Dynamic Range, Compact Design)

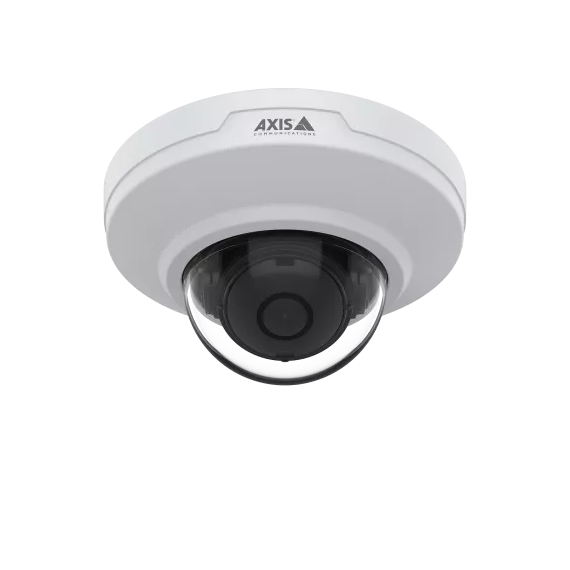

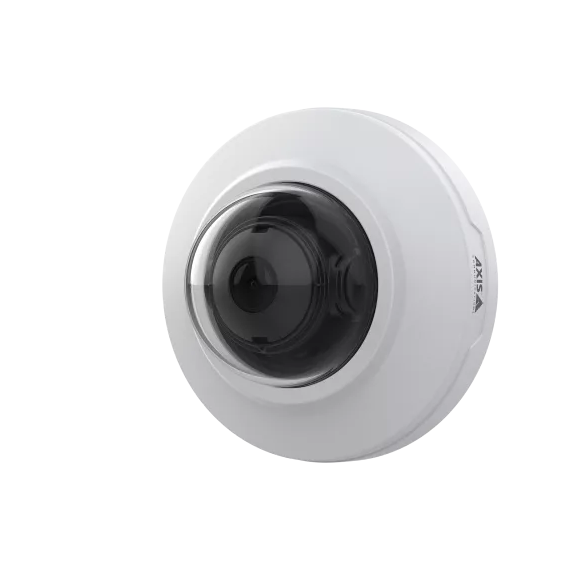

The AXIS M3088-V Indoor Mini Dome is part of Axis’s M30 series, designed for cost-efficient yet intelligent surveillance. It delivers up to 8MP (4K UHD) resolution using a 1/2.8" CMOS sensor with a 2.9 mm fixed lens providing a 109° horizontal field of view.
Built with a deep learning processing unit, it supports advanced analytics such as AXIS Object Analytics for detecting and classifying people and vehicles at the edge. With Forensic WDR and Axis Zipstream technology, it ensures clear image quality while optimising bandwidth and storage usage.
Its compact design and IK08-rated vandal-resistant housing make it suitable for indoor environments requiring discreet but reliable security coverage.
Key Features:
8MP (3840 × 2160) ultra-HD resolution
2.9 mm fixed wide-angle lens (109° horizontal FOV)
Deep Learning Processing Unit (DLPU) for AI analytics
AXIS Object Analytics (people & vehicle detection)
Forensic WDR for balanced exposure in mixed lighting
Axis Light compression (Zipstream H.264/H.265)
Day/night functionality with IR-cut filter
Compact indoor mini dome design
IK08 vandal-resistant housing
MicroSD card support for edge recording
PoE-powered for simple installation
ONVIF compatible for VMS integration
