AXIS M3215-LVE 2MP Outdoor Fixed Dome Camera (02371-001, IR Night Vision, WDR, Deep Learning Analytics, 30fps)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
AXIS M3215-LVE 2MP Outdoor Fixed Dome Camera (02371-001, IR Night Vision, WDR, Deep Learning Analytics, 30fps)

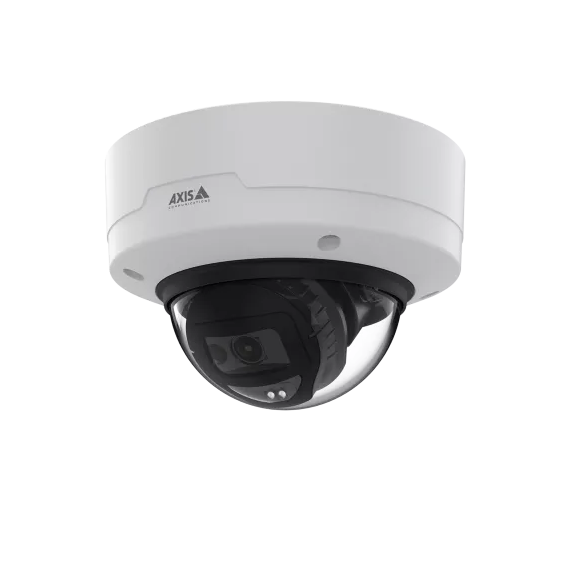

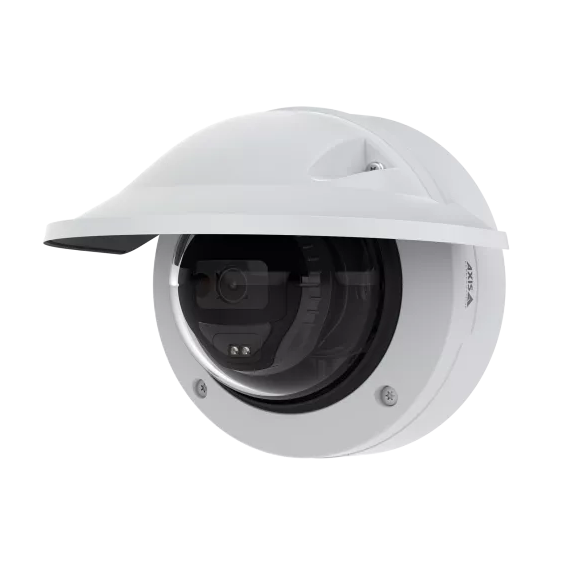

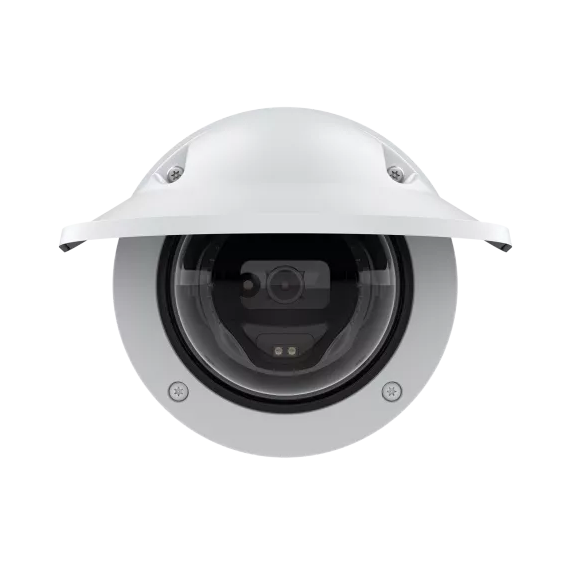

The AXIS M3215-LVE is part of Axis’s M32 series, offering cost-efficient intelligent surveillance for both indoor and outdoor environments. It captures 1080p (2MP) video at up to 30 fps using a 1/2.9" CMOS sensor and a 3.1 mm fixed lens providing around a 101° horizontal field of view. The camera includes built-in IR illumination for night monitoring up to approximately 30 meters, along with Lightfinder and Forensic WDR for clear imaging in challenging lighting conditions. Built on Axis ARTPEC architecture with a deep learning processing unit, it supports AXIS Object Analytics for detecting and classifying people and vehicles at the edge. Its IP66, NEMA 4X, and IK10-rated housing ensures durability for harsh outdoor installations.
Key Features:
2MP (1920 × 1080) Full HD resolution
Up to 30 fps video streaming
3.1 mm fixed wide-angle lens (~101° FOV)
Built-in IR illumination (OptimizedIR, up to ~30 m)
Lightfinder for low-light color imaging
Forensic WDR for balanced exposure
Deep Learning Processing Unit (DLPU)
AXIS Object Analytics (people & vehicle detection)
Zipstream H.264/H.265 compression
Edge storage via microSD card slot
IP66 weatherproof & IK10 vandal resistance
Indoor and outdoor installation support
PoE-powered for easy deployment
