AXIS M4308-PLE Outdoor Mini Dome Camera (02100-001) – 12MP 360° Panoramic Camera with IR, Audio & Deep Learning Analytics
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

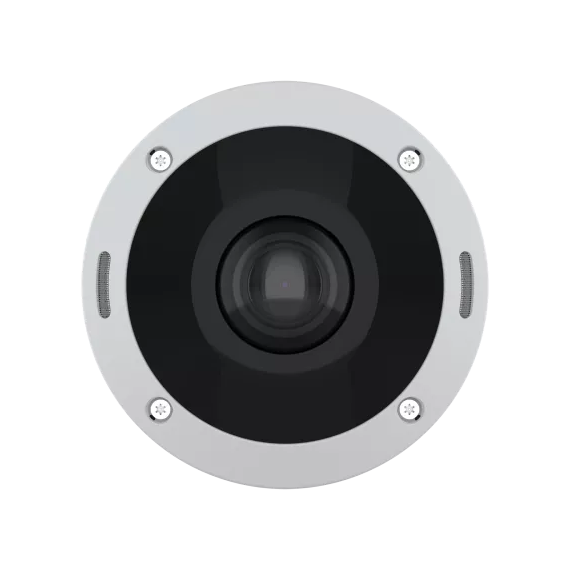

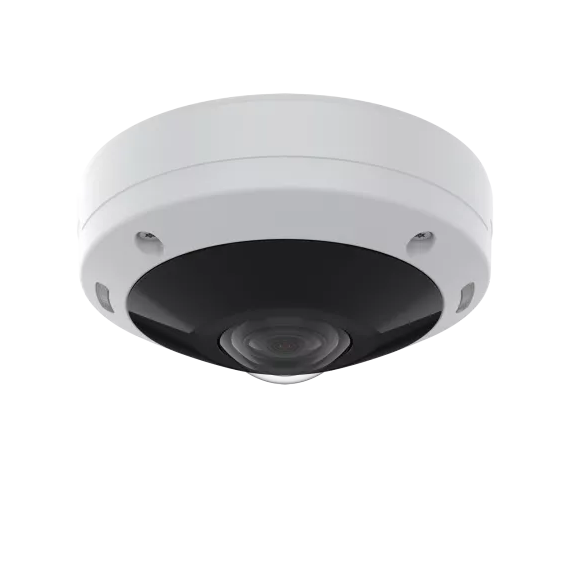

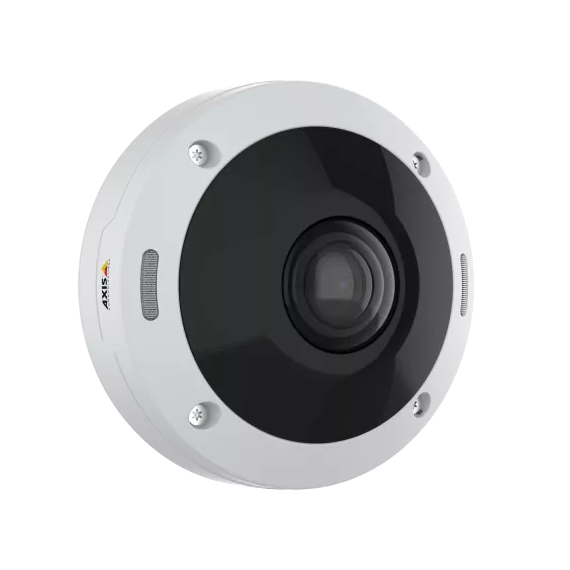

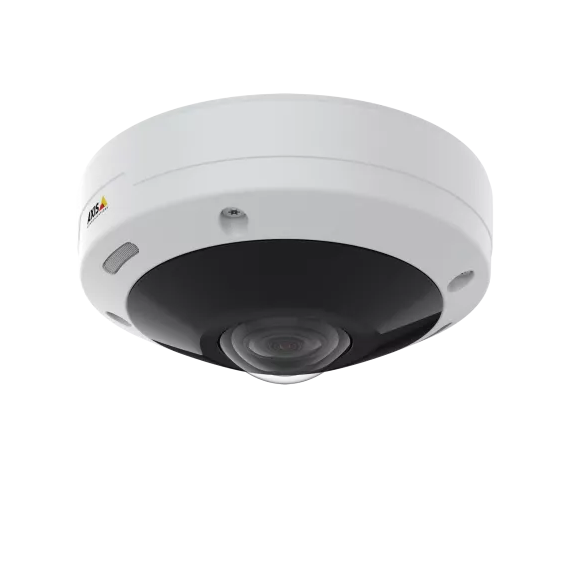

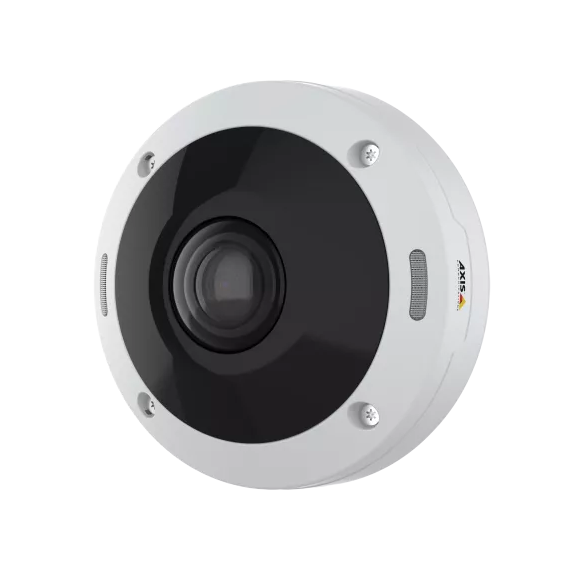

AXIS M4308-PLE Outdoor Mini Dome Camera (02100-001) – 12MP 360° Panoramic Camera with IR, Audio & Deep Learning Analytics
The AXIS M4308-PLE is a high-resolution panoramic surveillance camera designed to provide complete 360° coverage from a single device. Equipped with a 12MP sensor and 1.3 mm stereographic lens, it captures a full overview while offering dewarped views such as panorama, quad view, corridor view, and digital PTZ.
The camera includes Lightfinder, Forensic WDR, and OptimizedIR technologies for clear imaging day and night. A built-in Deep Learning Processing Unit (DLPU) enables advanced analytics including AXIS Object Analytics for accurate detection and classification of people and vehicles.
Four integrated microphones with voice enhancement provide high-quality audio capture, making it ideal for schools, retail stores, warehouses, and building entrances.
Key Features:
12MP panoramic network camera
Complete 360° overview with no blind spots
1.3 mm stereographic lens
183° horizontal and vertical field of view
Lightfinder technology for low-light color imaging
Forensic WDR for challenging lighting conditions
OptimizedIR for surveillance in complete darkness
Deep Learning Processing Unit (DLPU)
AXIS Object Analytics included
Four built-in microphones with voice enhancer
H.264 and H.265 with Axis Zipstream
Supports multiple dewarped viewing modes
Edge storage via microSD card slot
PoE-powered installation
Secure boot and signed firmware
IP66 outdoor protection
IK10 vandal-resistant housing
Suitable for retail, education, logistics, and public areas
