AXIS M4318-PLVE 12MP 360° Panoramic Outdoor Mini Dome Camera (Deep Learning, IR, Sharpdome)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

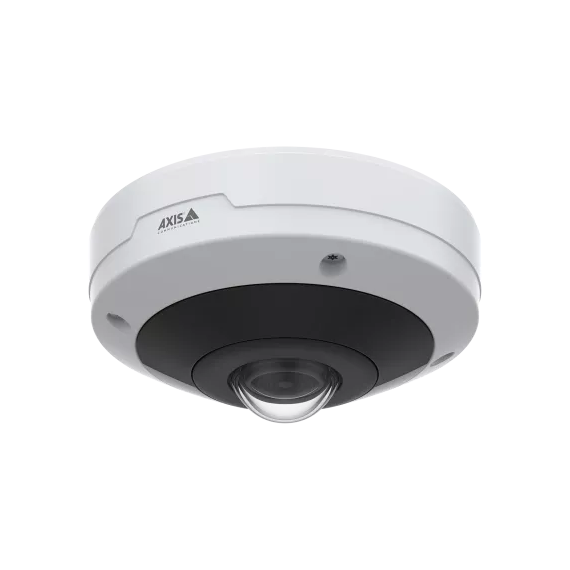

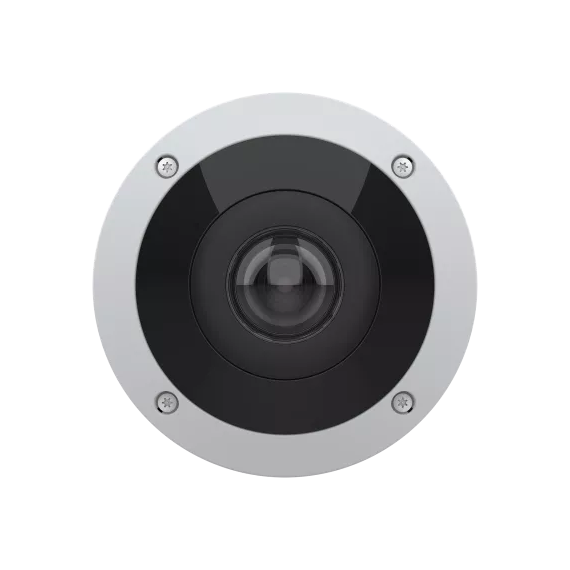

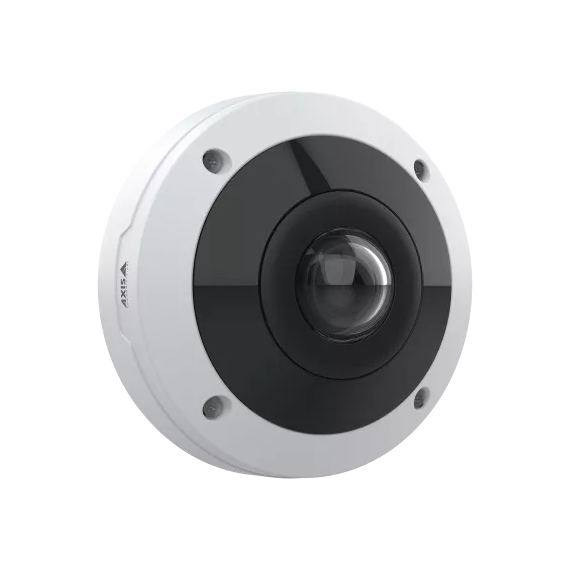

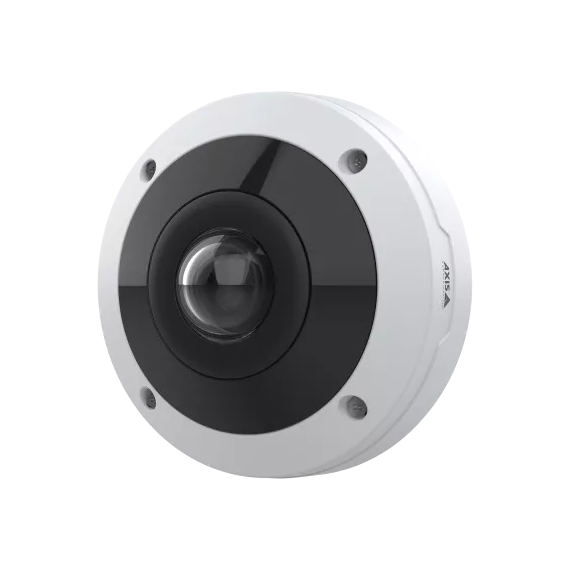

AXIS M4318-PLVE 12MP 360° Panoramic Outdoor Mini Dome Camera (Deep Learning, IR, Sharpdome)
The AXIS M4318-PLVE is part of Axis’s advanced panoramic camera lineup, designed to replace multiple fixed cameras with a single 360° device. It uses a 12MP sensor and a 1.2 mm fisheye-style lens to capture a full circular view with dewarped display options like panorama, quad, and corridor modes. With integrated IR illumination, it ensures usable night surveillance even in complete darkness. The camera also includes a deep learning processing unit (DLPU), enabling AI-based analytics such as object detection and classification directly on the edge, making it suitable for intelligent modern security systems.
Key Features:
12MP (2992 × 2992) ultra-high-resolution fisheye imaging
True 360° panoramic coverage (no blind spots)
1.2 mm fixed ultra-wide lens
Built-in IR illumination with individually controlled LEDs
Axis Lightfinder for excellent low-light colour performance
Forensic WDR for high-contrast environments
Deep learning processing unit (DLPU) for edge AI analytics
Axis Object Analytics (people & vehicle detection)
Multiple dewarped views (quad, panorama, corridor, corner)
Digital PTZ for flexible monitoring
IP66/IP67 weather protection and IK10 vandal resistance
PoE single-cable installation
microSD card support for edge recording
