AXIS M4327-P 6MP Indoor Fisheye Panoramic Network Camera (Deep Learning, 360° View)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

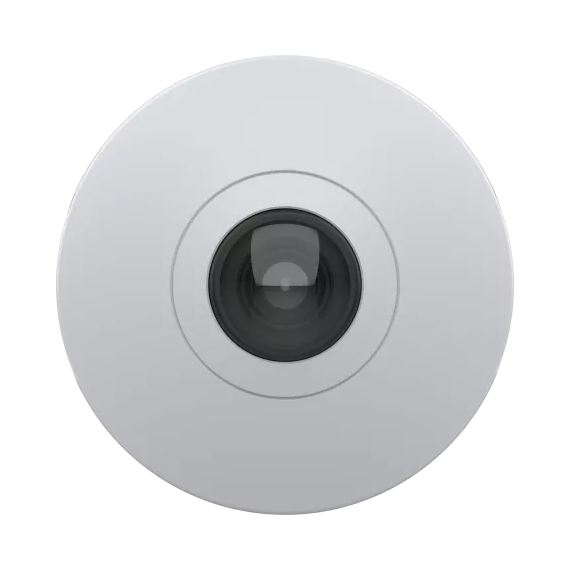

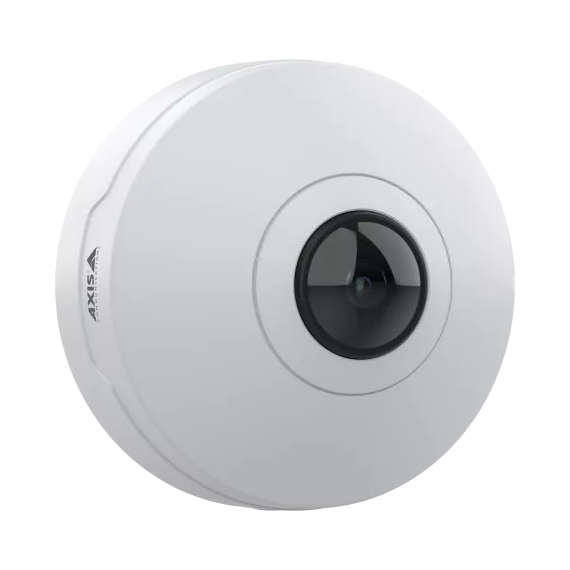

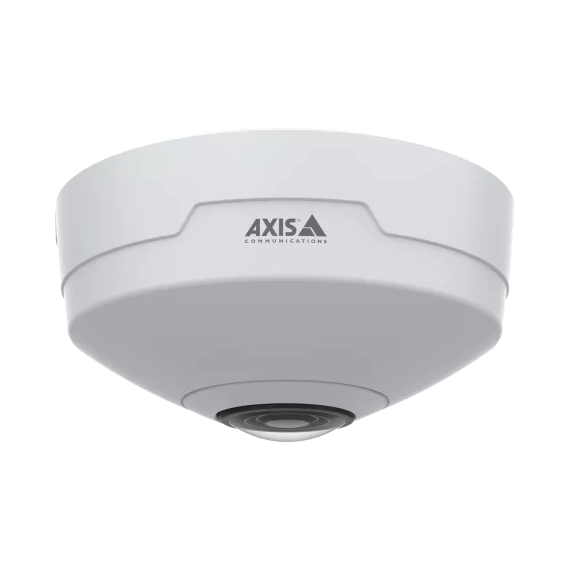

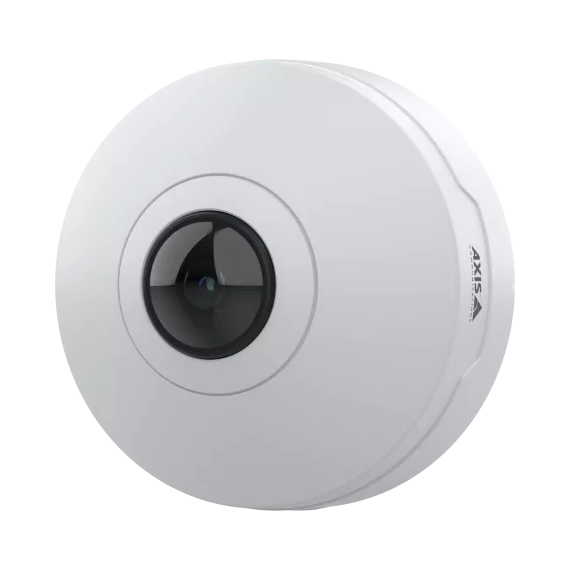

AXIS M4327-P 6MP Indoor Fisheye Panoramic Network Camera (Deep Learning, 360° View)
The AXIS M4327-P Indoor Fisheye Camera is a compact panoramic surveillance solution that provides complete situational awareness from a single device. It uses a 1/1.8" sensor and a 1.1 mm fisheye lens to capture 6MP video with up to 30 fps, offering a 182°–360° field of view depending on dewarping mode. Built on Axis ARTPEC architecture with a deep learning processing unit, it supports intelligent analytics like object detection and classification.
Features such as Lightfinder, Forensic WDR, and multiple dewarped views allow operators to zoom into different areas digitally without losing context.
Key Features:
6MP (up to 2160 × 2160) fisheye panoramic resolution
360° or 180° coverage with no blind spots
1.1 mm fixed ultra-wide fisheye lens
Up to 30 fps smooth video performance
Axis Lightfinder for low-light colour imaging
Forensic WDR for high-contrast environments
Deep learning processing unit (DLPU) for edge AI analytics
AXIS Object Analytics (people & vehicle detection)
Multiple dewarped view modes (quad, corridor, panorama)
Digital PTZ with zoomed-in virtual views
H.264 / H.265 video compression with Zipstream
microSD card slot for edge recording
Compact indoor ceiling-mount design
No reviews found
