AXIS P1385-E Outdoor Box Camera (02734-001) – 2MP Full HD Network Camera with AI Analytics & Rugged Housing
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
AXIS P1385-E Outdoor Box Camera (02734-001) – 2MP Full HD Network Camera with AI Analytics & Rugged Housing.

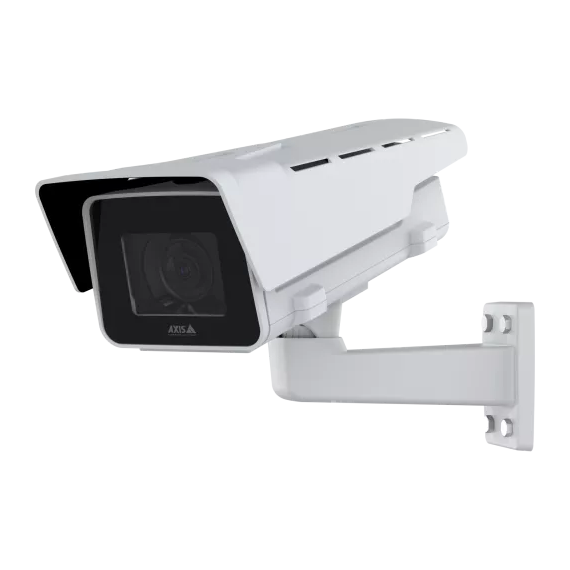

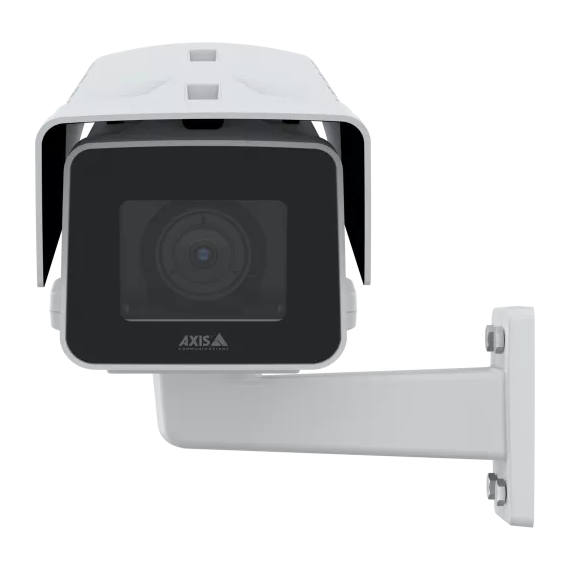

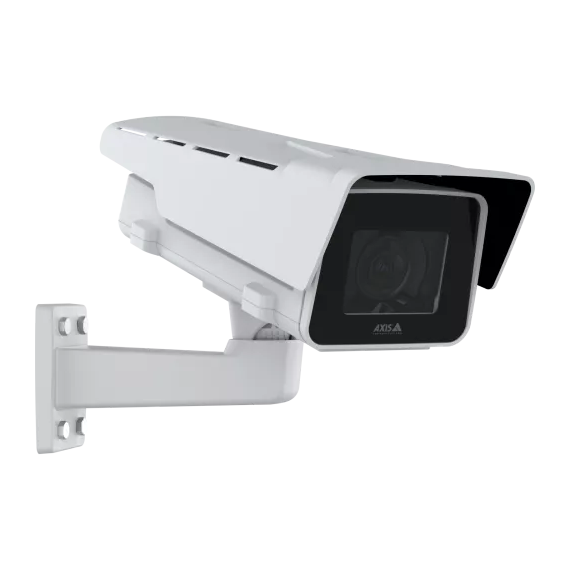

The AXIS P1385-E (02734-001) is a durable 2MP outdoor box camera designed for reliable surveillance in demanding conditions. It delivers crisp Full HD 1080p video at up to 60 fps and supports a 2.8–13mm varifocal CS-mount lens for flexible field-of-view adjustment.
Built with Axis Lightfinder 2.0 and Forensic WDR, it ensures excellent image quality in both low-light and high-contrast scenes. Its rugged IP66, IP67, IK10, and NEMA 4X-rated housing makes it suitable for industrial, commercial, and perimeter security applications where environmental resistance is critical.
Key Features:
2MP (1080p Full HD) video at up to 60 fps
2.8–13mm varifocal CS-mount lens for flexible coverage
Lightfinder 2.0 for color imaging in low light
Forensic WDR for balanced exposure in complex lighting
AI analytics support (object detection & classification)
H.264 / H.265 / Zipstream compression
Electronic Image Stabilisation (EIS) support
IP66 / IP67 / IK10 / NEMA 4X rugged protection
microSD card slot for edge storage
PoE-powered installation for simplified wiring
Built for industrial, transport, and perimeter surveillance
