Axis P1467-LE Compact Outdoor 5MP Bullet Camera
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

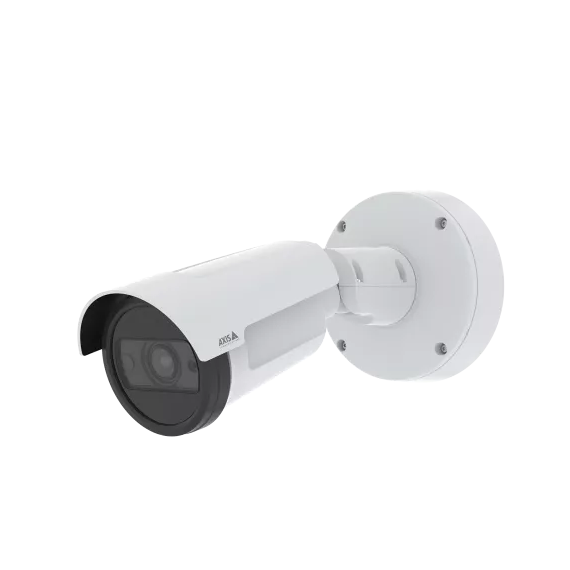

AXIS P1467-LE offers excellent image quality and advanced analytics based on deep learning on the edge. Including built-in cybersecurity features, this robust, outdoor-ready camera is ideal for a variety of surveillance scenarios.
Feature-packed
Based on ARTPEC-8, the latest Axis system-on-chip (SoC), this high-performance camera includes a deep learning processing unit (DLPU). This enables improved processing and storage capabilities allowing you to collect and analyze even more data than before—on the edge. Thanks to AXIS Object Analytics, it offers detection and classification of humans, vehicles, and types of vehicles—all tailored to your specific needs. With edge-to-edge technology, it can be connected to an Axis network speaker enabling two-way audio. Furthermore, it can be powered with DC power and PoE. And, even if there’s a power outage, redundant DC power ensures a reliable power supply to safeguard your data.
Excellent image quality day or night
This fully featured camera delivers excellent image quality regardless of the light conditions. It offers 5 MP resolution at a frame rate of up to 30 fps. Thanks to Lightfinder 2.0 and Forensic WDR, it delivers true colors and great forensic detail in challenging light or near darkness. OptimizedIR enables surveillance in total darkness up to 40 m (131 ft) without the need for extra lighting. And, motion-adaptive exposure reduces the motion blur from approaching or nearby objects. Furthermore, Zipstream with support for H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality.
We’ve got you secured
AXIS P1467-LE offers built-in cybersecurity features to help prevent unauthorized access and safeguard your system. Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. Additionally, signed firmware and secure boot guarantee that the firmware hasn’t been compromised and ensure only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware even after a factory default. Furthermore, this robust, outdoor-ready camera with IP66/67, NEMA 4X, and IK10-ratings is protected from dust, rain, snow and impacts, and can withstand winds up to 50 m/s.
