AXIS P1485-LE 2MP Outdoor AI Bullet Network Camera (03182-001) Smart IR Surveillance Camera with Analytics
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
AXIS P1485-LE 2MP Outdoor AI Bullet Network Camera (03182-001) Smart IR Surveillance Camera with Analytics

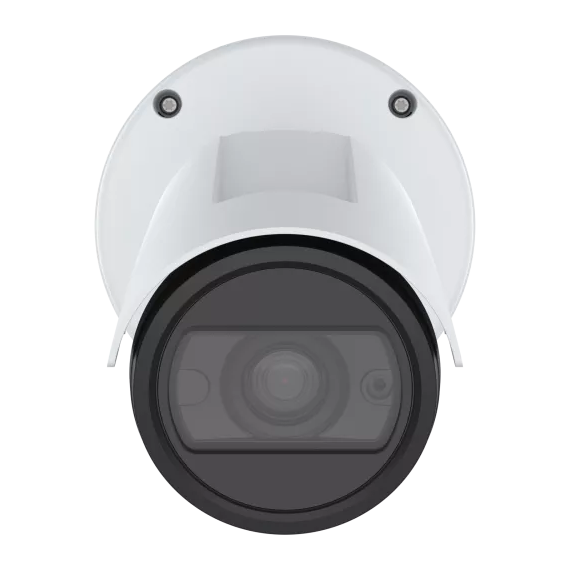

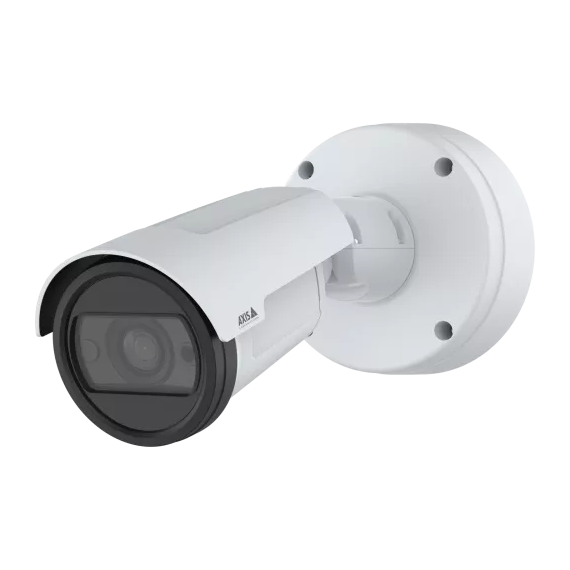

The AXIS P1485-LE (03182-001) is a professional 2MP outdoor bullet network camera designed for high-performance surveillance in demanding environments. It delivers full HD 1080p video at up to 60 fps with excellent clarity and detail, even in challenging lighting conditions. Powered by Axis ARTPEC technology and a deep learning processing unit, it supports AI-based analytics for detecting, classifying, and tracking humans and vehicles. With Lightfinder 2.0, Forensic WDR, and OptimizedIR night vision up to ~80 meters, it ensures reliable monitoring day and night. Its rugged design with IP66, IP67, IK10, and NEMA 4X ratings makes it suitable for highways, industrial zones, and critical infrastructure surveillance.
Key Features:
2MP Full HD (1920 × 1080) resolution
AI-powered analytics (object detection & classification)
Lightfinder 2.0 for excellent low-light performance
Forensic WDR for balanced image in difficult lighting
Built-in IR night vision up to ~80m (OptimizedIR)
10.8–28.2 mm varifocal lens with remote zoom & focus
Zipstream compression (H.264 / H.265 / AV1 support)
IP66, IP67, IK10, NEMA 4X rugged protection
AXIS Edge Vault cybersecurity protection
Ideal for outdoor professional surveillance systems
