AXIS P3275-LVE 10mm 2MP AI Dome Camera - Outdoor AI Network Dome with Smart IR & WDR Imaging
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

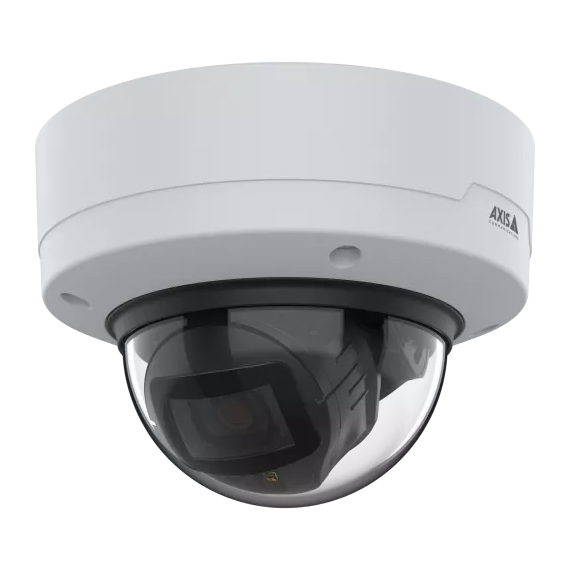

AXIS P3275-LVE 10mm 2MP AI Dome Camera – Outdoor AI Network Dome with Smart IR & WDR Imaging
The AXIS P3275-LVE 10mm 2MP AI Dome Camera is a professional outdoor surveillance solution designed for long-distance and high-precision monitoring. Featuring a 10mm telephoto lens, it provides a narrow and focused field of view ideal for entrances, perimeters, and critical security points. With smart IR night vision, Wide Dynamic Range (WDR), and advanced AI detection features, it ensures clear and reliable imaging in all lighting conditions. Its rugged, weather-resistant design makes it suitable for demanding outdoor environments such as industrial sites, parking areas, and commercial facilities.
Key Features:
2MP Full HD resolution for clear surveillance footage
10mm telephoto lens for long-range monitoring
Smart IR night vision for low-light and complete darkness
Wide Dynamic Range (WDR) for balanced image quality
AI-based human and vehicle detection
H.265/H.264 video compression for efficient storage
Weatherproof and vandal-resistant outdoor housing
PoE support for easy installation
Remote zoom and focus capability
Edge storage support via microSD card
Real-time network monitoring and management
Suitable for industrial, commercial, and perimeter security
