AXIS P3277-LVE 5MP Outdoor AI Dome Network Camera (03153-001)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
AXIS P3277-LVE 5MP Outdoor AI Dome Network Camera (03153-001)

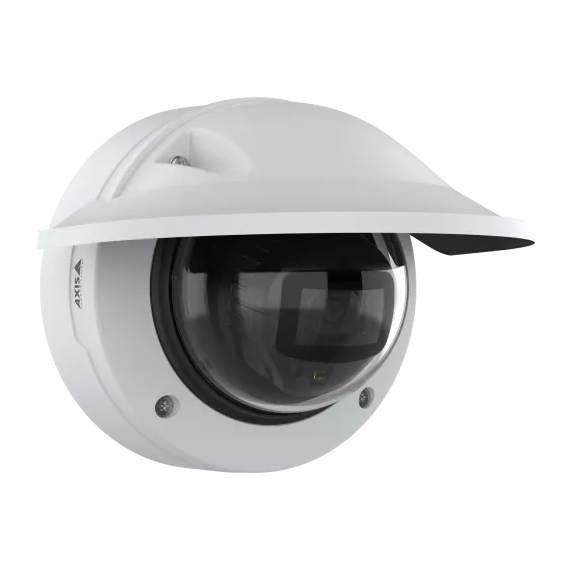

The AXIS P3277-LVE (03153-001) is a rugged 5-megapixel outdoor fixed dome network camera designed for high-performance video surveillance in critical security environments. Built on Uniview ARTPEC platform with deep learning processing unit (DLPU), it supports advanced edge-based AI analytics such as object classification, detection, and tracking. It delivers sharp 5MP resolution video with Lightfinder 2.0 for enhanced low-light color reproduction and Forensic WDR for balanced image quality in complex lighting conditions. With OptimizedIR, IP66, IK10, and NEMA 4X ratings, it is engineered for reliable operation in harsh outdoor environments.
Key Features
5MP (2592 × 1944) high-definition video resolution
AI-powered edge analytics with object detection, classification & tracking
Deep Learning Processing Unit (DLPU) for advanced on-camera intelligence
Lightfinder 2.0 for superior color imaging in near-dark conditions
Forensic WDR for optimized detail in high-contrast scenes
Built-in OptimizedIR for effective night surveillance
Varifocal motorized lens (3.0 – 8.5 mm) with remote zoom & focus
Uniview Zipstream technology for reduced bandwidth and storage usage
Uniview Edge Vault hardware-based cybersecurity protection
Rugged enclosure with IP66, IK10, and NEMA 4X ratings
Wide operating temperature range: -40°C to 50°C
Power over Ethernet (PoE) for simplified installation
ONVIF compliant for broad VMS integration
