AXIS P3278-LV 8MP Indoor AI-Driven Dome Network Camera (03154-001)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

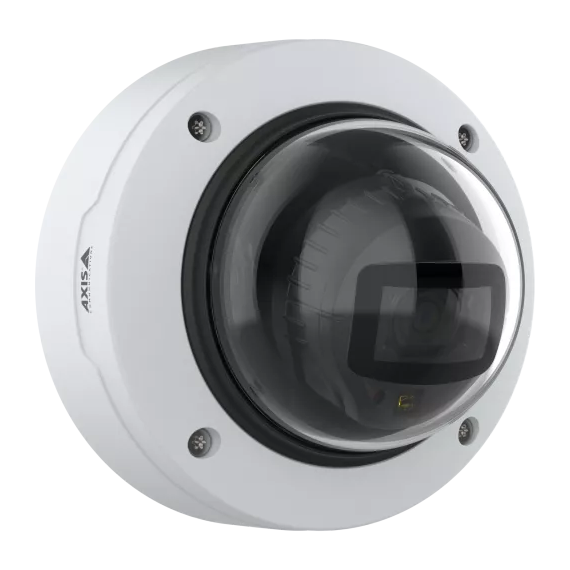

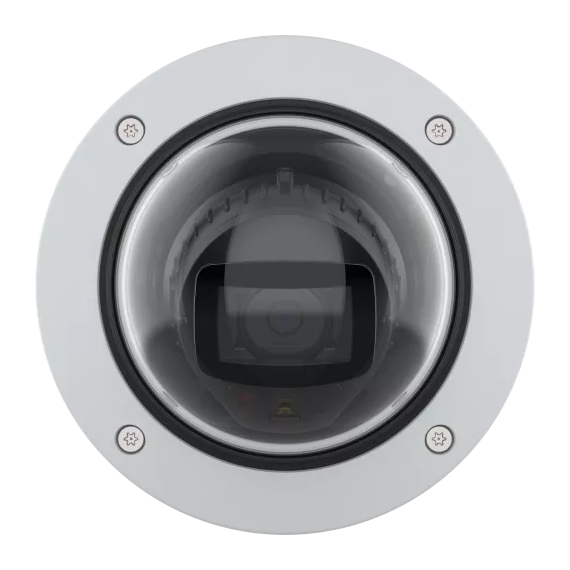

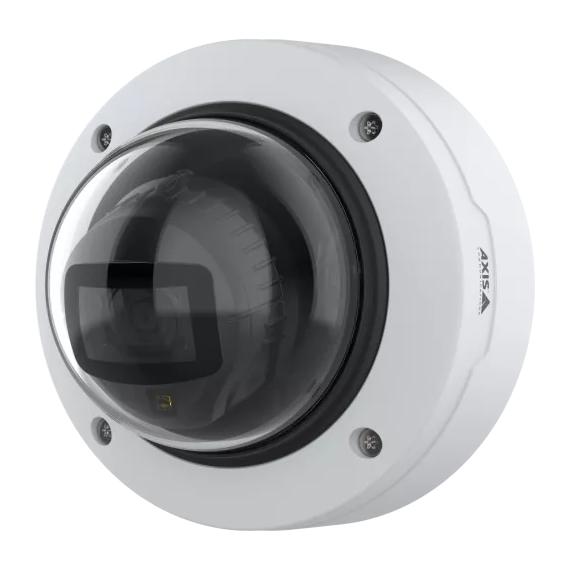

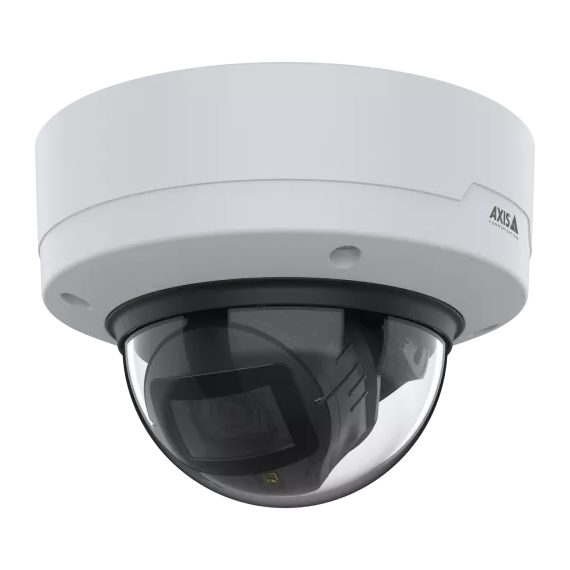

AXIS P3278-LV 8MP Indoor AI-Driven Dome Network Camera (03154-001)
The AXIS P3278-LV (03154-001) is a high-performance 8-megapixel indoor fixed dome network camera engineered for enterprise-grade surveillance applications.
It delivers ultra-high-definition 4K resolution with exceptional image clarity using Axis Lightfinder 2.0 technology for enhanced low-light colour reproduction and Forensic WDR for optimised visibility in complex lighting environments.
Powered by an AI-enabled processing unit, it supports advanced edge analytics including object classification, motion detection, and behavioural analysis.
Key Features:
8MP (3840 × 2160) Ultra HD resolution for forensic-level detail capture
AI-enabled analytics support for intelligent video surveillance
Lightfinder 2.0 technology for superior colour imaging in low light
Forensic WDR for balanced exposure in high-contrast environments
Edge-based processing for real-time event detection and classification
Built-in IR illumination for enhanced nighttime visibility
Varifocal motorised lens (4.4 – 14.6 mm) with remote zoom & focus control
AXIS Zipstream technology for optimised bandwidth and storage efficiency
AXIS Edge Vault hardware-based cybersecurity platform
IK10-rated vandal-resistant dome housing for indoor security applications
Support for H.264, H.265, and AV1 video compression standards
Power over Ethernet (PoE) for simplified installation and reduced cabling
