AXIS P3288-LVE Outdoor 8 MP AI-powered Dome with Audio Analytics
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

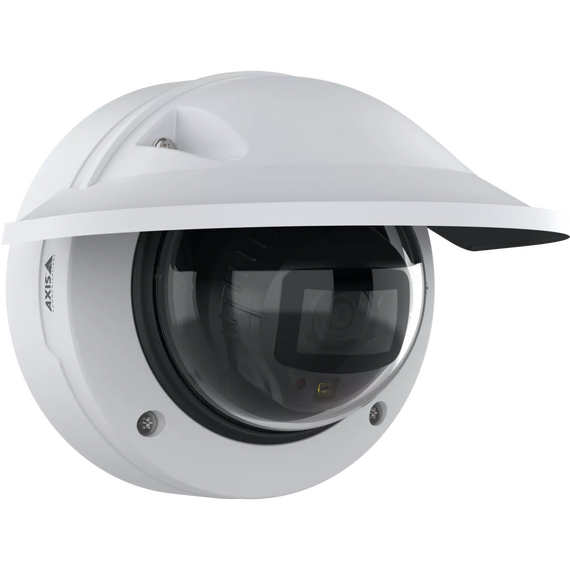

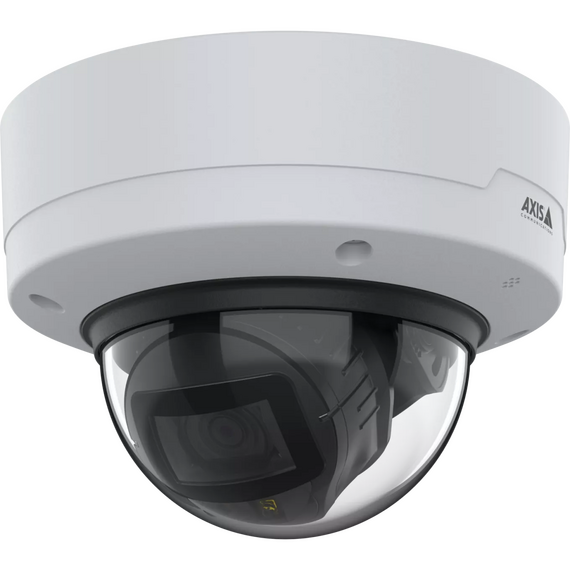

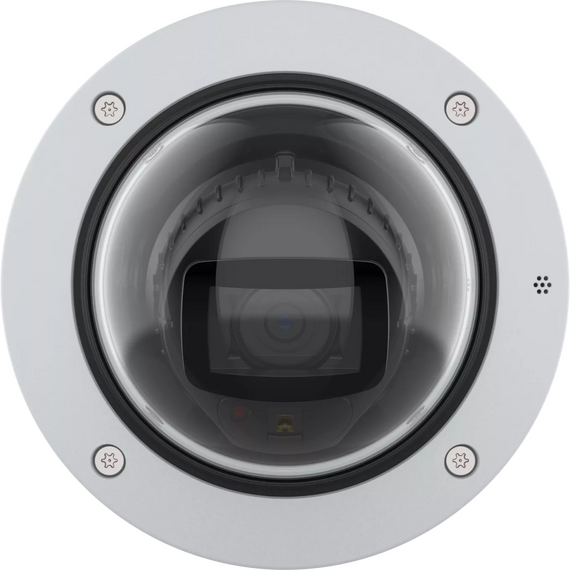

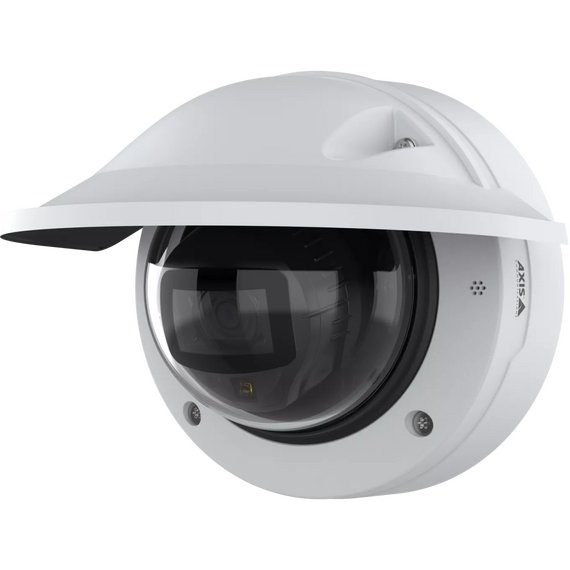

AXIS P3288-LVE Outdoor 8 MP AI-Powered Dome Camera with Audio Analytics
The AXIS P3288-LVE is an advanced 8 MP outdoor AI-powered dome camera designed to deliver exceptional image quality and intelligent analytics in demanding surveillance environments. Built on the latest ARTPEC-9 system-on-chip, it combines powerful edge-based AI, audio analytics and enterprise-grade cybersecurity to provide highly accurate detection and reliable monitoring for commercial, industrial and public sector applications.
The camera captures crystal-clear 4K Ultra HD (3840 × 2160) video at up to 30 fps, ensuring outstanding forensic detail in all lighting conditions. Featuring Lightfinder 2.0, Forensic WDR and OptimizedIR, it delivers true-to-life colours in near darkness and sharp images in complete darkness without the need for additional lighting. Support for AV1, alongside H.264 and H.265 with Axis Zipstream, helps reduce bandwidth and storage requirements while maintaining exceptional image quality.
Powered by a dedicated Deep Learning Processing Unit (DLPU), the P3288-LVE runs advanced analytics directly on the camera. AXIS Object Analytics is pre-installed, enabling accurate detection, classification, tracking and counting of people, vehicles and vehicle types. An integrated acoustic sensor supports AXIS Audio Analytics, allowing the camera to detect events such as screams, shouts, glass breakage and sudden changes in sound levels, even when there is no visual indication. Additional built-in applications, including AXIS Image Health Analytics and AXIS Live Privacy Shield, further enhance system reliability and privacy protection.
Designed for reliable outdoor operation, the AXIS P3288-LVE features a rugged IK10 vandal-resistant housing with IP66, IP67 and NEMA 4X ratings for protection against harsh weather and impact. It operates in temperatures from -40°C to +50°C and includes remote zoom, remote focus, integrated infrared illumination and edge storage via a microSD card slot. Axis Edge Vault provides hardware-based cybersecurity with secure boot, signed firmware and FIPS 140-3 Level 3 certified secure key storage, helping to protect the device against cyber threats.
Key Features
- 8 MP (4K Ultra HD) resolution at up to 30 fps
- ARTPEC-9 processor with Deep Learning Processing Unit (DLPU)
- Lightfinder 2.0, Forensic WDR and OptimizedIR
- AV1, H.265 and H.264 video compression with Axis Zipstream
- AXIS Object Analytics pre-installed
- Integrated AXIS Audio Analytics with acoustic sensor
- AXIS Image Health Analytics
- AXIS Live Privacy Shield
- Remote zoom and remote focus
- Built-in infrared illumination
- MicroSD card slot for edge storage
- IK10 vandal-resistant housing
- IP66, IP67 and NEMA 4X weather protection
- Axis Edge Vault hardware-based cybersecurity
- Secure boot and FIPS 140-3 Level 3 secure key storage
- Five-year Axis warranty
