AXIS P3747-PLVE Panoramic Camera (02897-001) – 4×5MP 360° Multisensor Outdoor AI Dome with PTRZ & IR
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
AXIS P3747-PLVE Panoramic Camera (02897-001) – 4×5MP 360° Multisensor Outdoor AI Dome with PTRZ & IR

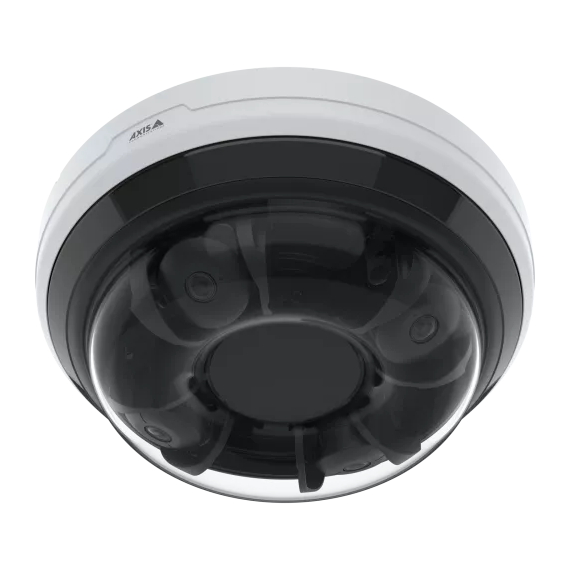

The AXIS P3747-PLVE (02897-001) is a high-end panoramic surveillance camera designed for full-area monitoring using four 5MP sensors. It delivers a true 360° field of view with high-resolution detail, making it ideal for large outdoor environments such as parking areas, industrial sites, and building perimeters. With built-in AI analytics, Forensic WDR, and 360° IR illumination, it ensures reliable performance in both day and night conditions. Its PTRZ (Pan-Tilt-Roll-Zoom) functionality allows precise remote alignment during installation, reducing setup complexity while maintaining optimal coverage.
Key Features:
- 4×5MP multisensor panoramic imaging (360° coverage)
- High-detail surveillance with up to 20MP combined resolution
- AI-based human and vehicle detection
- PTRZ remote adjustment for flexible installation
- 360° IR illumination for night monitoring
- Forensic WDR for high-contrast scenes
- H.265 / H.264 video compression
- Edge analytics support with DLPU processing
- IP66 weatherproof and IK10 vandal-resistant housing
- microSD edge storage support
- Remote focus and configuration tools
- Designed for large-area outdoor security monitoring
