AXIS P4707-PLVE 7MP 360° Multidirectional Outdoor Dome Camera (Dual Sensor, IR, Deep Learning Analytics)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
AXIS P4707-PLVE 7MP 360° Multidirectional Outdoor Dome Camera (Dual Sensor, IR, Deep Learning Analytics)

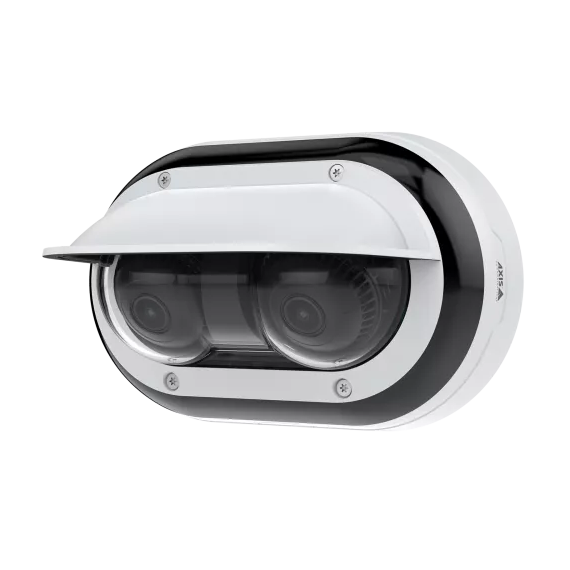

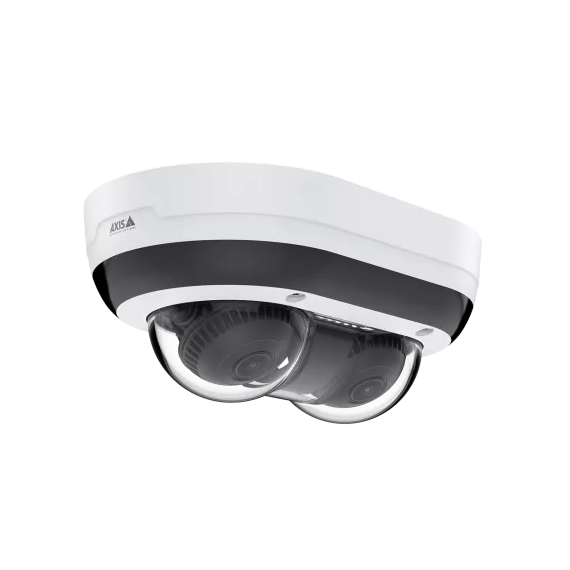

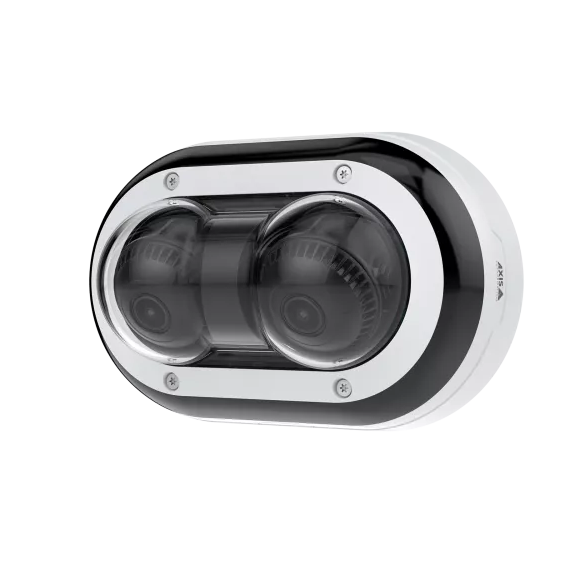

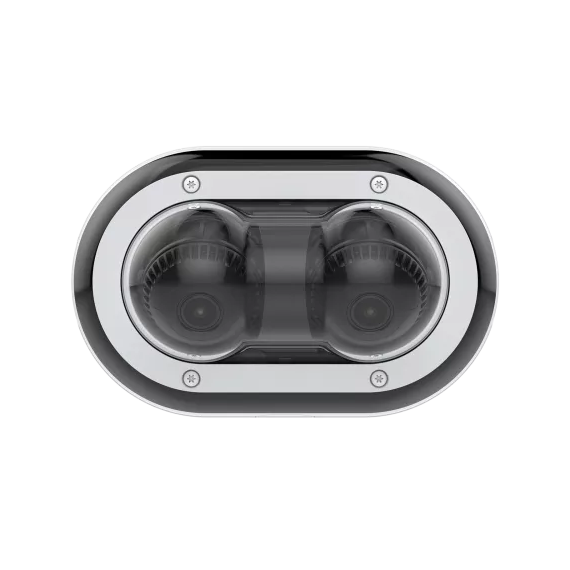

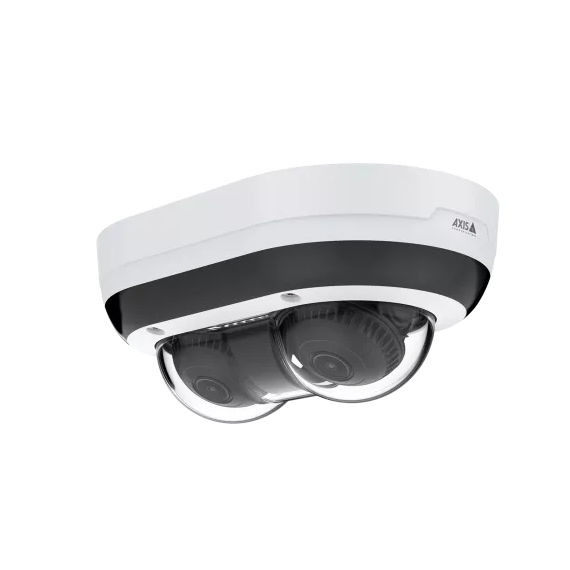

The AXIS P4707-PLVE is a flexible outdoor surveillance solution built with two independently adjustable camera heads, allowing operators to monitor two different directions from a single device. Each sensor captures high-quality 5MP video, enabling a combined total resolution of up to 10MP while maintaining clear detail across wide scenes. The camera supports motorized varifocal lenses, built-in IR illumination for night vision, and Axis Lightfinder technology for excellent low-light performance. With Forensic WDR and a deep learning processing unit, it can run AXIS Object Analytics for real-time detection of people and vehicles. Its rugged IP66, IK10, and NEMA 4X-rated housing make it suitable for outdoor installations such as intersections, building corners, and perimeter zones where multi-directional coverage is required.
Key Features:
Dual-sensor panoramic camera (two independently adjustable lenses)
2 × 5MP resolution (up to 10MP combined output)
360° multidirectional coverage from a single IP device
Motorised varifocal lenses (3.3–8.1 mm)
Built-in 360° IR illumination (up to ~50 ft range)
Lightfinder for superior low-light colour imaging
Forensic WDR for high-contrast environments
Deep Learning Processing Unit (DLPU) for AI analytics
AXIS Object Analytics (people & vehicle detection)
Flexible positioning of each camera head (two directions)
Multiple video streams including Multiview output
H.264, H.265 with Axis Zipstream compression
Remote zoom and focus control
microSD edge storage support
IP66, IK10, and NEMA 4X-rated rugged housing
PoE support for simplified installation
