AXIS Q1805-LE 2MP Outdoor Bullet Camera (32x Optical Zoom, NEMA 4X, Deep Learning, Long-Range Surveillance)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

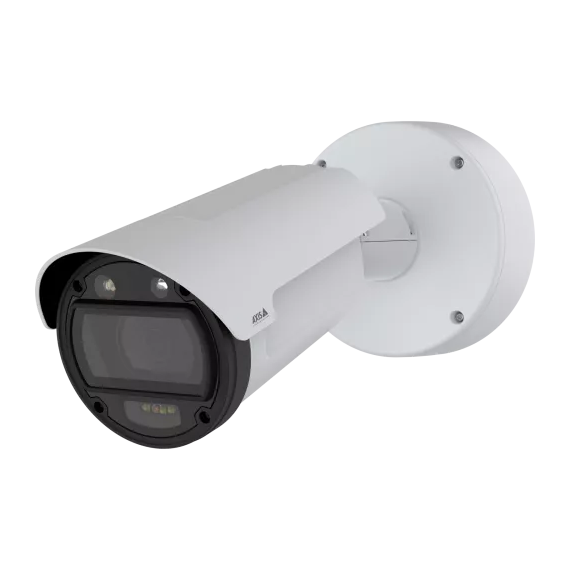

AXIS Q1805-LE 2MP Outdoor Bullet Camera (32x Optical Zoom, NEMA 4X, Deep Learning, Long-Range Surveillance).
The AXIS Q1805-LE is part of Axis’s high-end Q18 series, engineered for precise long-distance monitoring in harsh outdoor environments. It delivers Full HD 1080p video using a 1/2.8" sensor and a 4.3–137 mm motorized varifocal lens with up to 32x optical zoom, allowing operators to switch from wide-area coverage to detailed identification of distant objects. With Axis Lightfinder 2.0 and Forensic WDR, it maintains strong image clarity in low-light and high-contrast conditions, while built-in IR illumination extends visibility at night. The integrated deep learning processing unit enables AI-based detection of people and vehicles directly on the camera, improving situational awareness and reducing false alarms. Its NEMA 4X, IP66/IP67, and IK10-rated housing ensures reliable operation in extreme weather and demanding industrial environments, with a wide operating range down to -40°C.
Key Features:
2MP (1920 × 1080) Full HD resolution
32x optical zoom (4.3–137 mm motorized varifocal lens)
Ultra-wide to telephoto field of view (approx. 60° to 2.3°)
Axis Lightfinder 2.0 for low-light color imaging
Forensic WDR for high-contrast environments
Built-in IR illumination (optimized for long-range night vision)
Deep learning processing unit (DLPU) for edge AI analytics
Axis Object Analytics (people & vehicle detection)
Electronic image stabilization for reduced motion blur
IP66/IP67 weather protection and NEMA 4X-rated enclosure
IK10 impact resistance for vandal protection
PoE support for single-cable installation
microSD edge storage support
Operating range down to -40°C to +60°C
