AXIS Q1971-E 7mm 30fps Thermal Camera (02945-001) - Outdoor Thermal Network Bullet Camera with AI Detection
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

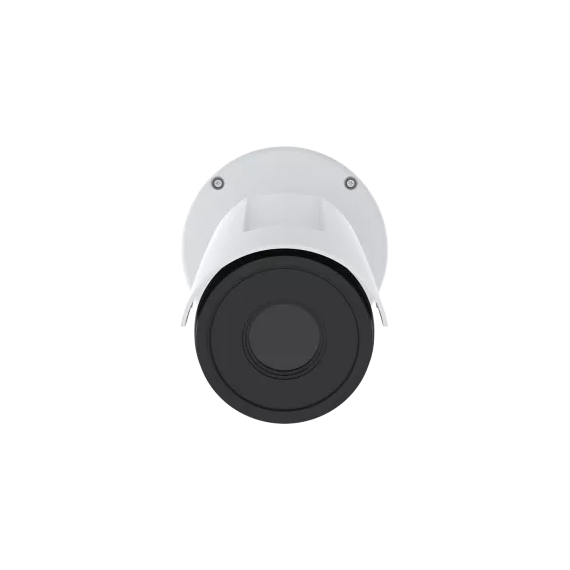

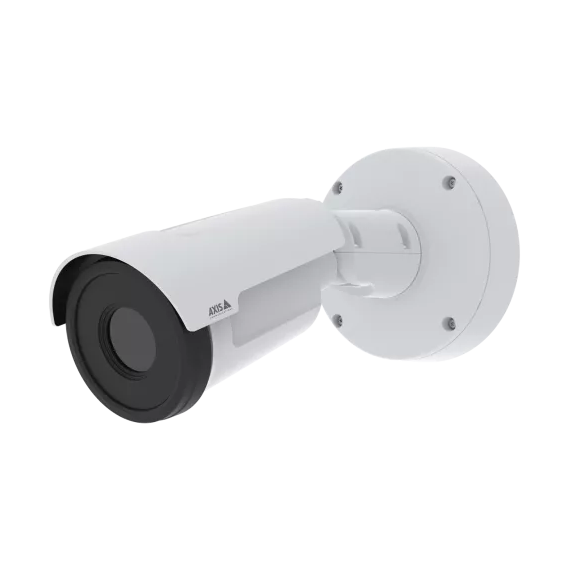

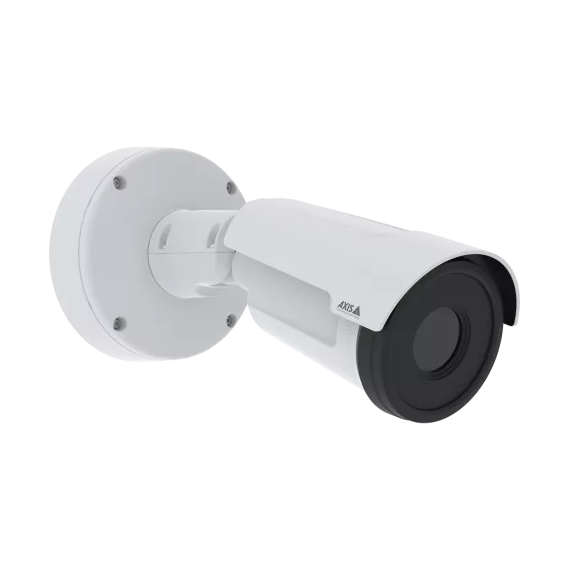

AXIS Q1971-E 7mm 30fps Thermal Camera (02945-001) – Outdoor Thermal Network Bullet Camera with AI Detection
The AXIS Q1971-E 7mm 30fps Thermal Camera (02945-001) is a high-performance outdoor thermal surveillance solution designed for reliable detection in complete darkness and challenging environmental conditions. It uses a 384×288 uncooled microbolometer sensor paired with a 7mm lens to deliver wide-area thermal coverage with smooth 30fps imaging. Built for perimeter protection, it ensures accurate detection of humans and vehicles regardless of lighting, weather, or visibility conditions such as fog, smoke, or total darkness.
Key Features:
- Thermal imaging with 384×288 resolution
- 7mm fixed thermal lens for wide detection coverage
- 30fps smooth thermal video output
- AI-based motion and object detection support
- Operates in complete darkness and poor weather conditions
- Rugged IP66/IP67 & IK10-rated outdoor housing
- Supports microSD edge storage
- Alarm I/O support for external security integration
- H.264 video compression for efficient streaming
- PoE-powered for simplified installation
- Designed for perimeter, industrial, and critical infrastructure security
