AXIS Q6300-E 50Hz Awareness Camera (02942-001) - 360° Panoramic Multi-Sensor Outdoor Surveillance Camera.
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

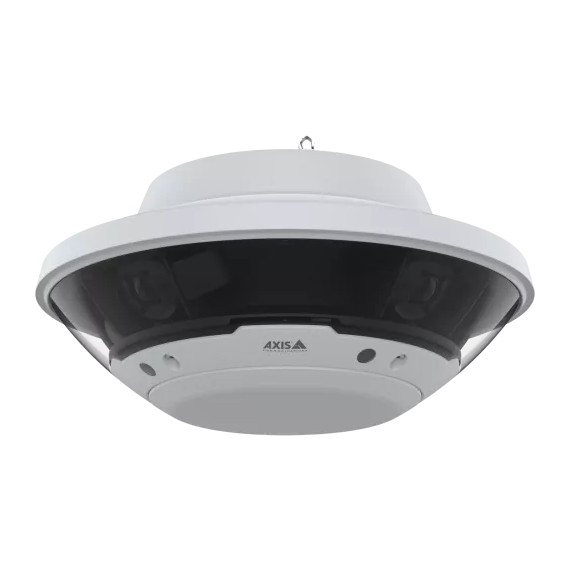

AXIS Q6300-E 50Hz Awareness Camera (02942-001) – 360° Panoramic Multi-Sensor Outdoor Surveillance Camera
The AXIS Q6300-E 50Hz Awareness Camera (02942-001) is a high-performance panoramic surveillance solution designed to deliver complete 360° situational awareness in demanding outdoor environments. Featuring four high-sensitivity 5MP sensors with interchangeable lenses, it provides wide-area monitoring with exceptional image clarity and intelligent AI-based analytics. Built for integration with PTZ systems, it enables operators to move instantly from overview monitoring to zoomed-in detail tracking. Its rugged IP66/IK10-rated construction and advanced directional audio detection make it ideal for airports, industrial sites, city surveillance, and critical infrastructure security. .
Key Features:
- 360° panoramic surveillance coverage
- Four high-sensitivity 5MP sensors
- AI-powered object detection and tracking
- Directional audio detection support

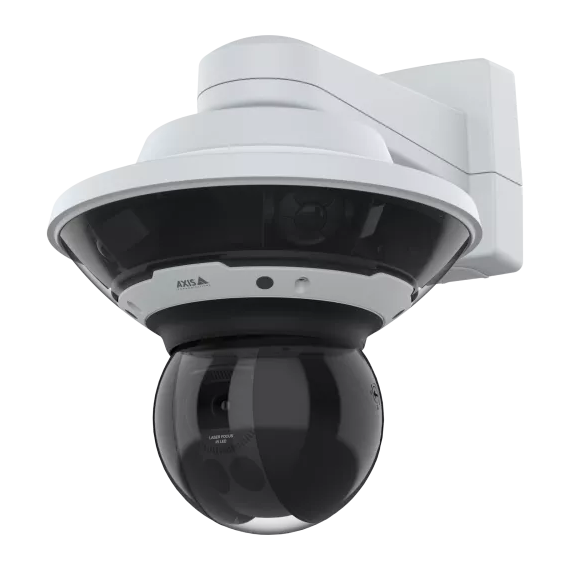

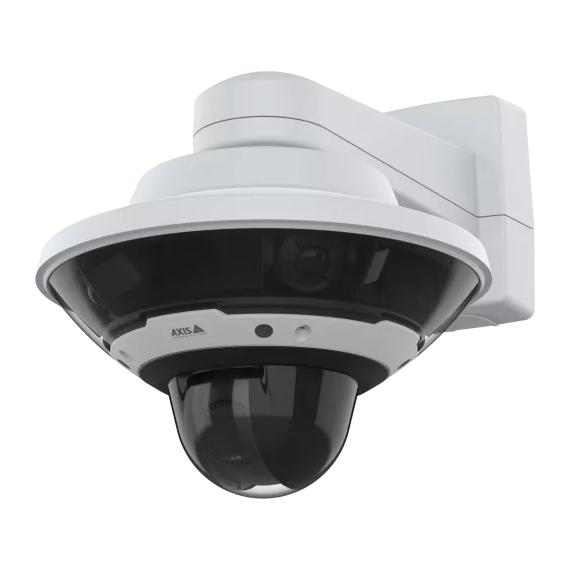

- Compatible with PTZ integration systems
- Exchangeable lenses from 3.9mm to 25mm
- H.264 / H.265 / MJPEG video compression
- Built-in edge analytics with DLPU processing
- IP66 weatherproof and IK10 vandal-resistant housing
- Full-size SD card slot for edge recording
- Autofocus and day/night operation
- Suitable for large-scale outdoor monitoring environments
