Axis Q6325-LE 2MP Outdoor AI PTZ Network Camera (03313-001) 31x Zoom IR Surveillance Camera
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

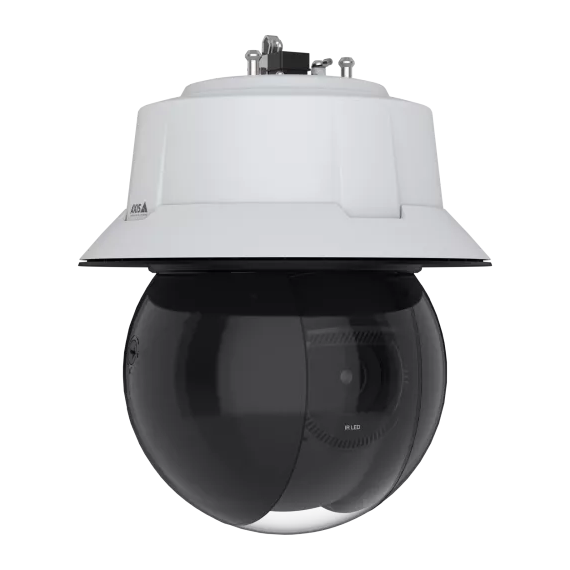

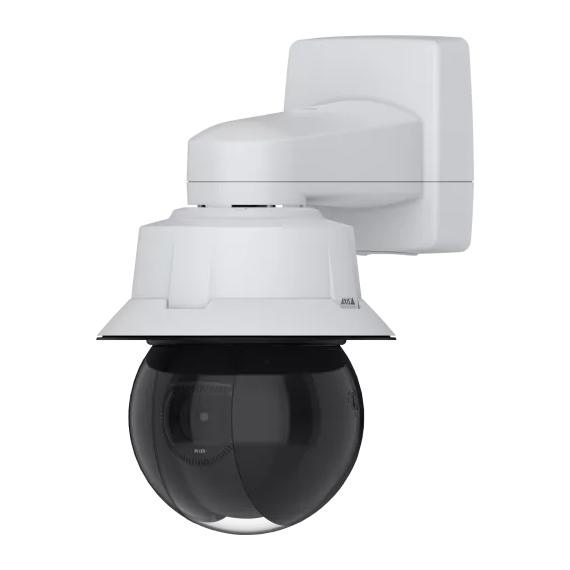

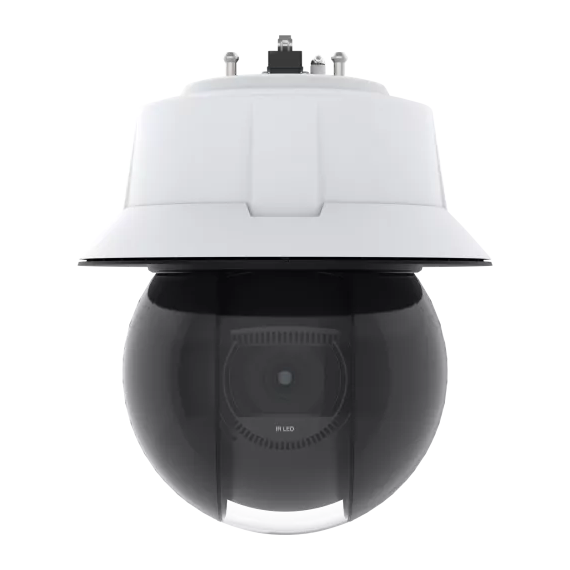

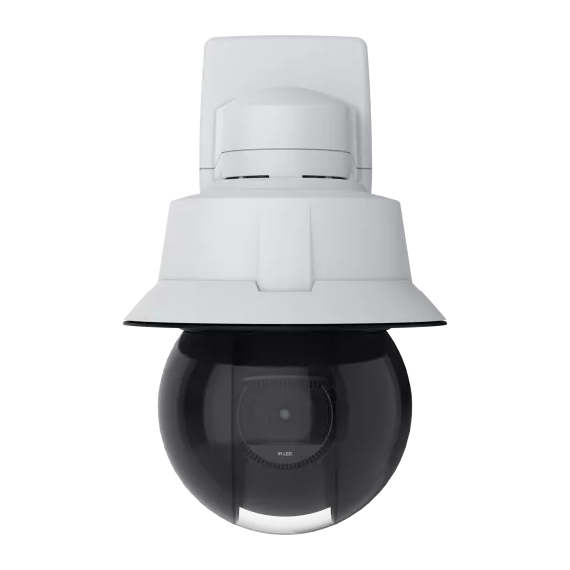

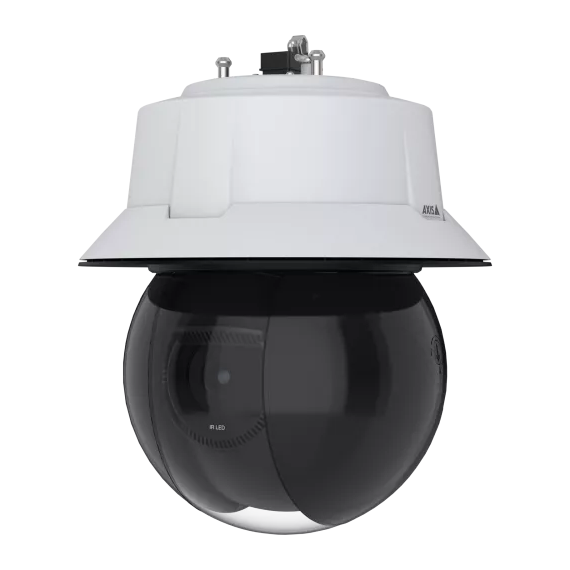

Axis Q6325-LE 2MP Outdoor AI PTZ Network Camera (03313-001) 31x Zoom IR Surveillance Camera.
The Axis Q6325-LE (03313-001) is a high-performance 2MP outdoor PTZ network camera designed for large-area surveillance. It delivers Full HD 1080p video with a powerful 31x optical zoom and advanced AI-based analytics for detecting and classifying humans and vehicles. Built on Uniview ARTPEC technology, it features excellent low-light performance with Lightfinder 2.0, Forensic WDR, and integrated OptimizedIR night vision up to 250 meters. With IP66, IK10, and NEMA-rated protection, it is engineered for harsh outdoor environments such as highways, city surveillance, industrial zones, and critical infrastructure security.
Key Features:
2MP Full HD (1080p) PTZ network camera
31x optical zoom with autofocus
AI-powered analytics (object detection & classification)
OptimizedIR night vision up to 250m
Lightfinder 2.0 for superior low-light imaging
Forensic WDR for balanced exposure
360° endless pan with high-speed movement
IP66, IK10 & NEMA 4X rated housing
Edge-based analytics with Axis Object Analytics
Ideal for outdoor large-area surveillance
