AXIS Q8752-E Mk II 35mm 8.3 fps PTZ Camera (03052-001) Bispectral Thermal & Optical Network PTZ Camera
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

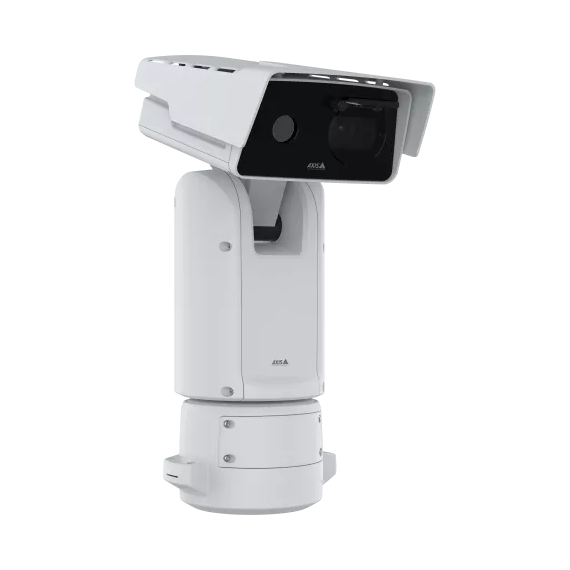

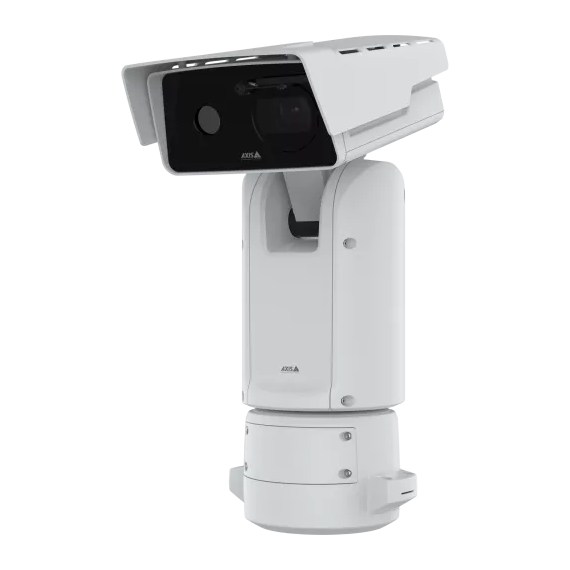

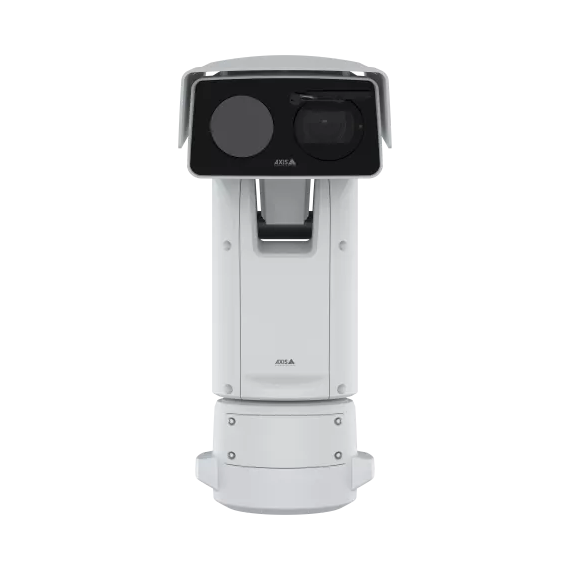

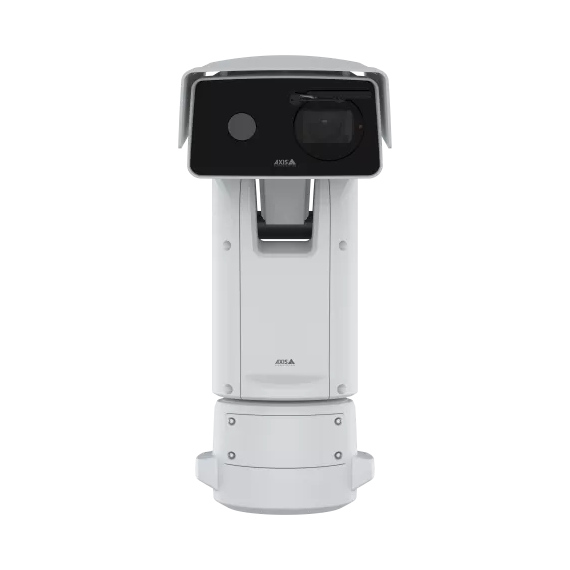

AXIS Q8752-E Mk II 35mm 8.3 fps PTZ Camera (03052-001) – Bispectral Thermal & Optical Network PTZ Camera
The AXIS Q8752-E Mk II 35mm 8.3 fps PTZ Camera (03052-001) is a high-end bispectral surveillance solution combining thermal imaging and optical video in a single rugged PTZ system. It features a 35mm fixed thermal sensor for long-range detection alongside a Full HD optical channel with powerful 32x zoom for visual verification. Designed for critical infrastructure and perimeter security, it delivers reliable performance in complete darkness, fog, smoke, and challenging environmental conditions. Its AI-driven analytics and 360° PTZ movement make it ideal for large-scale outdoor monitoring applications.
Key Features:
- Bispectral PTZ camera (thermal + optical channels)
- 35mm fixed thermal lens for long-range detection
- 1080p Full HD optical imaging with 32x zoom
- 8.3 fps thermal imaging performance
- 360° infinite pan PTZ movement
- AI-based object detection and tracking support
- Forensic WDR and Lightfinder for optical clarity
- Rugged IP66/IK10 weatherproof housing
- Designed for critical infrastructure security
- Supports edge analytics and smart event response
- High-performance low-light and no-light monitoring
- PoE / high-power network integration support
- Application - Perimeter, Critical Infrastructure, Industrial Security
No reviews found
