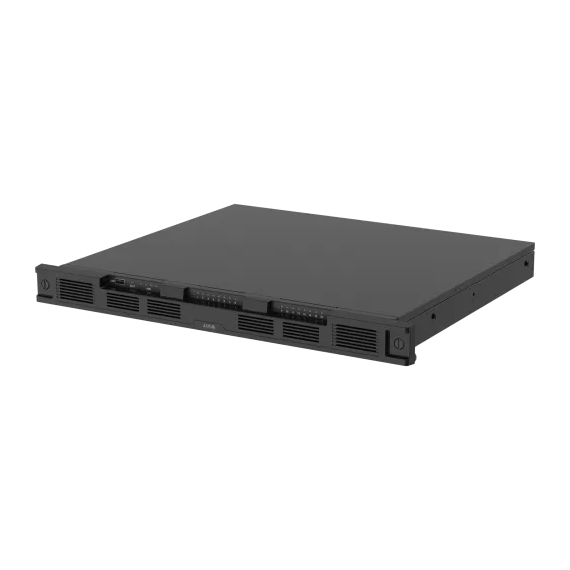

AXIS S3016 32TB Recorder (02352-001) – 16-Channel Rack Network Video Recorder with PoE Switch & RAID Storage
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
AXIS S3016 32TB Recorder (02352-001) – 16-Channel Rack Network Video Recorder with PoE Switch & RAID Storage
The AXIS S3016 32TB Recorder is a professional surveillance recording solution built for scalable IP video systems. It combines a powerful 16-channel PoE switch with four surveillance-grade hard drives providing a total of 32TB storage, enabling continuous 24/7 recording for multiple HD or 4K cameras. Designed for AXIS Camera Station environments, it supports RAID configurations (0, 1, 5, 6, 10) for data protection and uptime reliability. The unit is optimised for easy deployment with plug-and-play camera discovery, secure AXIS OS architecture, and centralised management tools, making it suitable for enterprise, industrial, and multi-site surveillance installations.
Key Features:
16-channel network video recorder (NVR)
Built-in 16-port PoE switch (up to 305W total power budget)
32TB total surveillance-grade storage (4 HDDs included)
Supports RAID 0, 1, 5, 6, and 10 configurations
Designed for AXIS Camera Station / AXIS OS ecosystem
Validated for up to 16 camera streams
1U rack-mountable design for server rooms
Gigabit switching with high-speed uplink support
Secure AXIS OS with cybersecurity protections
Plug-and-play installation with automatic camera detection
Suitable for single-site and multi-site surveillance systems
5-year manufacturer warranty
