AXIS T8524 PoE+ Network Switch (01192-003) – 24-Port Managed Gigabit PoE+ Switch with 370W Power Budget
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

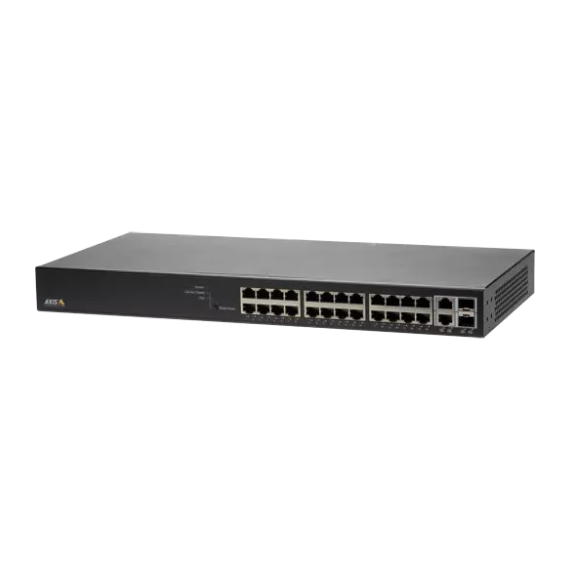

AXIS T8524 PoE+ Network Switch (01192-003) – 24-Port Managed Gigabit PoE+ Switch with 370W Power Budget.
The AXIS T8524 PoE+ Network Switch is designed specifically for professional surveillance deployments, making it an ideal companion for AXIS cameras, encoders, and recorders. The switch features 24 Gigabit PoE+ ports, delivering up to 30W per port with a total PoE budget of 370W, allowing it to power multiple IP cameras and edge devices simultaneously. Its integrated DHCP server, VLAN support, QoS controls, and graphical topology interface simplify installation and network management.
The switch also includes 2 combo SFP/RJ45 uplink ports for flexible network expansion and enterprise-grade security features such as HTTPS, IEEE 802.1X, ACLs, and DHCP snooping.
Key Features:
24 × Gigabit Ethernet PoE+ ports
Up to 30W PoE+ per port
Total PoE power budget of 370W
2 × Combo RJ45/SFP Gigabit uplink ports
Managed switch with graphical topology interface
Integrated DHCP server for automatic device discovery
VLAN, QoS, STP, RSTP, and MSTP support
HTTPS encryption and IEEE 802.1X authentication
AXIS Device Manager compatible
Cable diagnostics and device monitoring
52 Gbps switching capacity
6 kV surge protection on network and AC lines
Rack-mountable 1U metal chassis
Optimized for AXIS surveillance systems
5-year AXIS warranty
- Dual Gigabit Combo RJ45/SFP Ports
