AXIS T94C01L Recessed Mount (01242-001) – In-Ceiling Mount for AXIS M42 Series Cameras
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

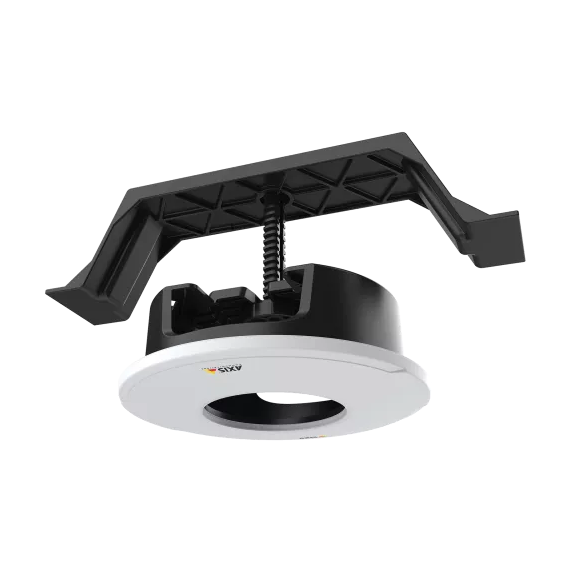

AXIS T94C01L Recessed Mount (01242-001) – In-Ceiling Mount for AXIS M42 Series Cameras.
The AXIS T94C01L Recessed Mount is a space-efficient mounting accessory engineered for indoor drop-ceiling installations.
Featuring a patent-pending single-screw ceiling attachment, it allows quick and easy installation without extensive ceiling modifications. When installed, the camera sits recessed within the ceiling structure, creating an elegant and unobtrusive surveillance solution.
The mount is compatible with selected AXIS M42 Series cameras and AXIS Companion Dome Mini LE, making it ideal for offices, retail stores, hotels, schools, and other environments where aesthetics are important.
Key Features:
Recessed ceiling mount for indoor installations
Elegant, low-profile appearance
Single-screw attachment for fast installation
Designed for drop-ceiling applications

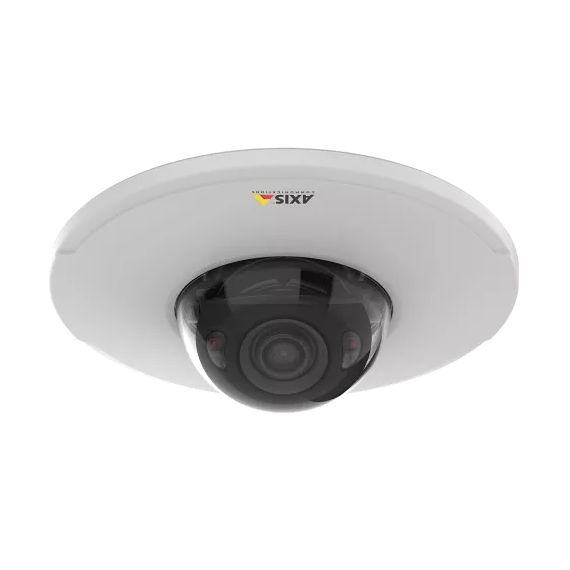

Camera is embedded inside the ceiling
Only dome and cover ring remain visible
Compatible with AXIS M42 Series cameras
Compatible with AXIS Companion Dome Mini LE
Space-saving design
Professional cable concealment
Durable construction
Backed by AXIS 3-year warranty
Ideal for offices, retail stores, educational facilities, and commercial buildings
