AXIS TI8602 Wall Mount Back Box (02066-001) - Heavy-Duty Outdoor Intercom Mount with IP69 & IK10 Protection
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

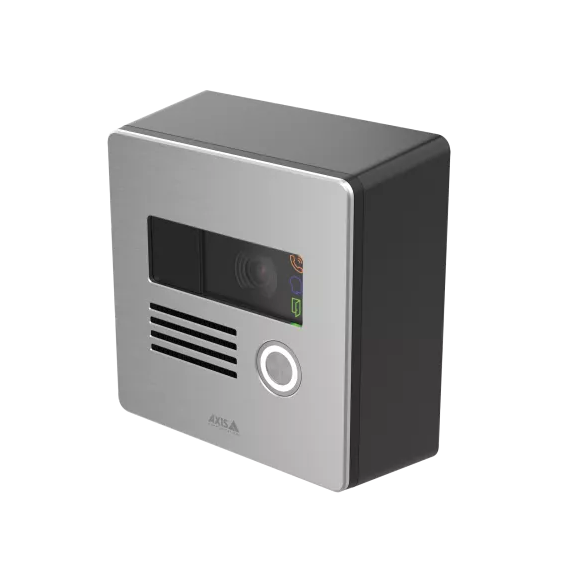

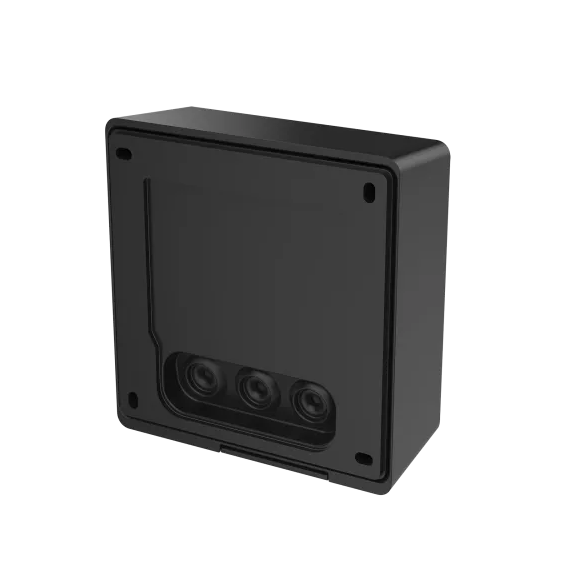

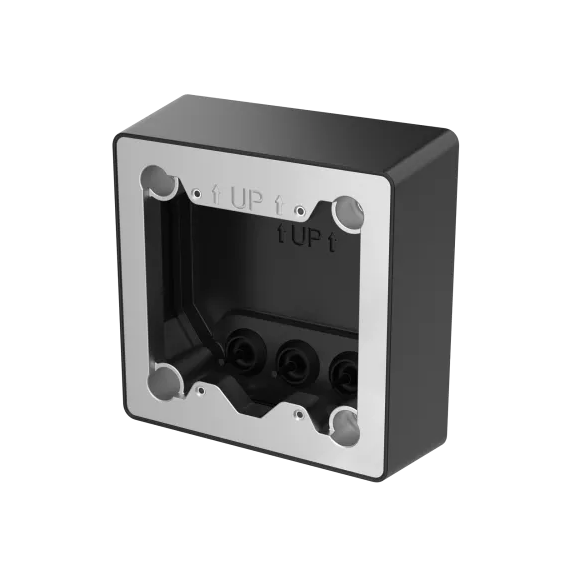

AXIS TI8602 Wall Mount Back Box (02066-001) – Heavy-Duty Outdoor Intercom Mount with IP69 & IK10 Protection.
The AXIS TI8602 Wall Mount Back Box is engineered for professional intercom installations where durability, protection, and clean cable management are essential. It is primarily designed for the AXIS I8016-LVE Network Video Intercom, offering a solid aluminium housing that shields connections from dust, water, corrosion, and vandalism.
The mount also supports optional conduit adapters for protected cable routing, making it suitable for exposed outdoor locations such as building entrances, gates, and security points. Its robust construction ensures long-term stability and secure device placement in high-traffic environments.
Key Features:
Heavy-duty wall mount back box for AXIS intercom systems
Designed for AXIS I8016-LVE Network Video Intercom
IP66 / IP69-rated protection against water and dust
IK10 impact-resistant aluminium housing
Suitable for indoor and outdoor installations
Optional conduit adapter support for protected cabling
Corrosion-resistant and vandal-resistant design
Clean and secure cable management
Professional-grade mounting solution for public access areas
Easy installation with AXIS intercom ecosystem compatibility
No reviews found
