AXIS TQ1602-E Conduit Back Box (02421-001) - Outdoor Weatherproof Back Box for Bullet Cameras
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

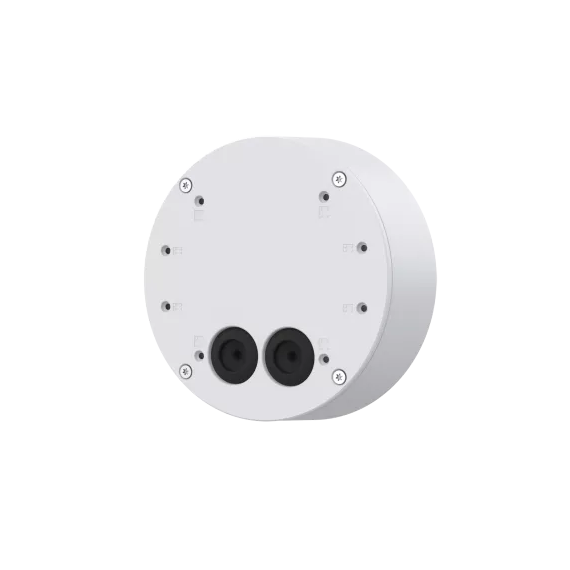

AXIS TQ1602-E Conduit Back Box (02421-001) – Outdoor Weatherproof Back Box for Bullet Cameras.
The AXIS TQ1602-E is specifically engineered to simplify outdoor camera installations by allowing both the camera and connectivity devices to be mounted at the same location without requiring a separate cabinet. Its sealed compartment can securely house accessories such as network cable couplers or IP-over-Coax adapters while protecting them from water, dust, and vandalism.
Constructed from durable aluminium and designed for use with various AXIS bullet camera series, it delivers a clean, professional installation for perimeter, industrial, and critical infrastructure surveillance applications.
Key Features:
Outdoor-ready conduit back box for AXIS bullet cameras
IP66/IP67-rated sealed compartment for connectivity devices
IK10+ impact resistance against vandalism
3/4" NPS / M25 conduit interface from side and rear
Durable aluminum construction
Stores network couplers, PoE accessories, or IP-over-Coax adapters
Enables clean cable management and protected connections
Compatible with selected AXIS P14, Q17, Q19, and newer bullet camera series
Suitable for wall, pole, corner, and junction box installations
Includes gaskets, mounting hardware, and installation accessories
PVC-free design
