AXIS TQ1808-VE Surveillance Cabinet (02359-001) - Outdoor Vandal-Resistant Enclosure for Network Video Equipment & Power Modules
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

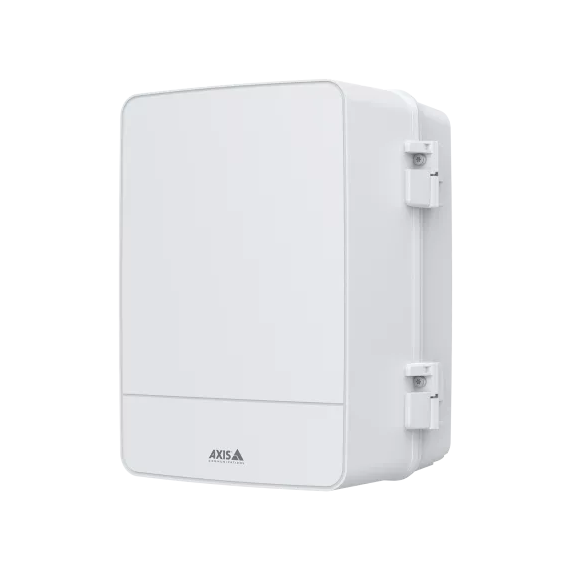

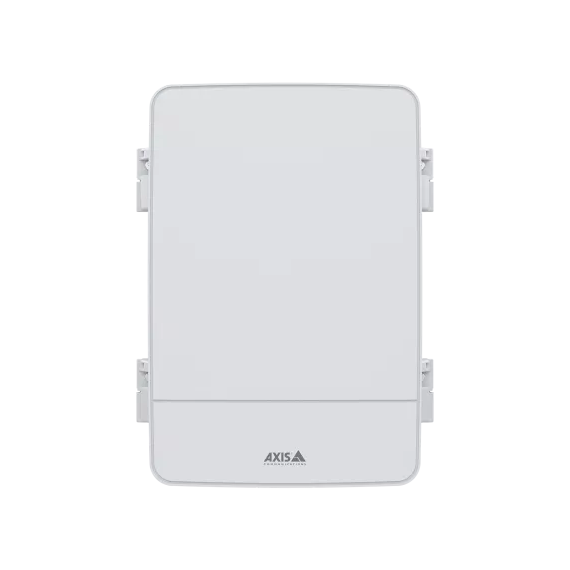

AXIS TQ1808-VE Surveillance Cabinet (02359-001) – Outdoor Vandal-Resistant Enclosure for Network Video Equipment & Power Modules
The AXIS TQ1808-VE Surveillance Cabinet is an extended-depth enclosure designed for professional surveillance installations where multiple system components need to be protected in a single housing. It is engineered to accommodate devices such as PoE switches, power supplies, surge protectors, and AXIS system accessories, making it ideal for distributed or remote surveillance setups.
The cabinet is built for outdoor use with strong environmental sealing, ensuring protection against dust, rain, and tampering. Its modular design allows integrators to build complete surveillance stations inside the enclosure, reducing the need for separate housings and improving installation efficiency.
Key Features:
Outdoor surveillance equipment cabinet (empty enclosure)
IP66 weatherproof protection against dust and water jets
IK10 vandal-resistant construction

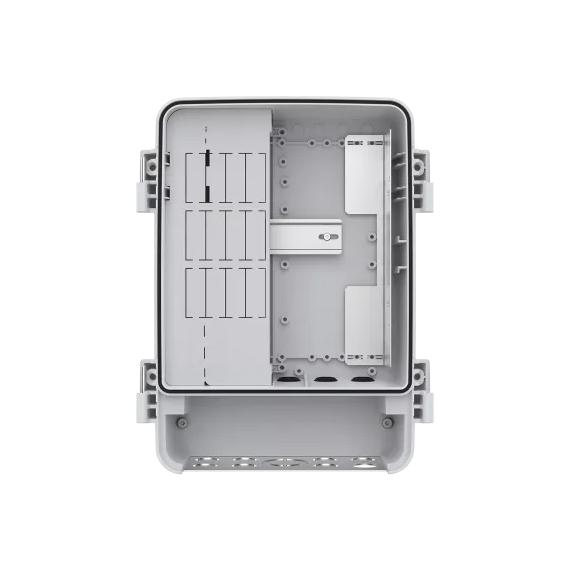

Extended internal space for multiple devices
Compatible with AXIS PoE switches, power supplies, and surge protectors
Supports modular installation of surveillance system components
Designed for wall or pole-mounted deployments
Suitable for harsh outdoor environments (-40°C to +75°C operating range)
Ideal for remote, industrial, and infrastructure surveillance sites
Supports clean cable management and secure system integration
