CCTV RG59 Shotgun Cable - 100M
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
CCTV RG59 Shotgun Cable 100m
The CCTV RG59 Shotgun Cable 100m provides a simple and reliable way to carry both video and power to analogue CCTV cameras using a single cable run.

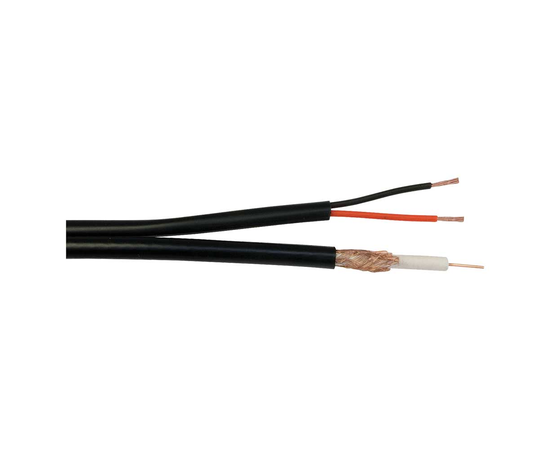

Its shotgun construction combines RG59 coaxial cable for the video signal with a separate 2-core power cable, helping reduce installation time and keeping cabling neater than running separate video and power cables. This makes it a popular choice for traditional and HD analogue CCTV installations.
Supplied as a 100 metre reel, the cable can be cut to the required length for each camera position, making it ideal for domestic, commercial and professional CCTV installations using DVR-based systems.
Key Features:
- 100 metre RG59 shotgun cable
- Combined video and power cable
- RG59 coaxial cable for CCTV video transmission
- Integrated 2-core power cable
- Allows video and power to be run together
- Helps reduce installation time and cable clutter
- Suitable for analogue and HD analogue CCTV systems
- Ideal for connecting CCTV cameras to DVR recorders
- Cut cable to the required length for each camera
- Suitable for home, commercial and professional CCTV installations
