Product Details for EMS SmartCell Wireless Ceiling Mounted Sounder VAD (Red Body / Red Flash) (SC-33-0110-0001-99)

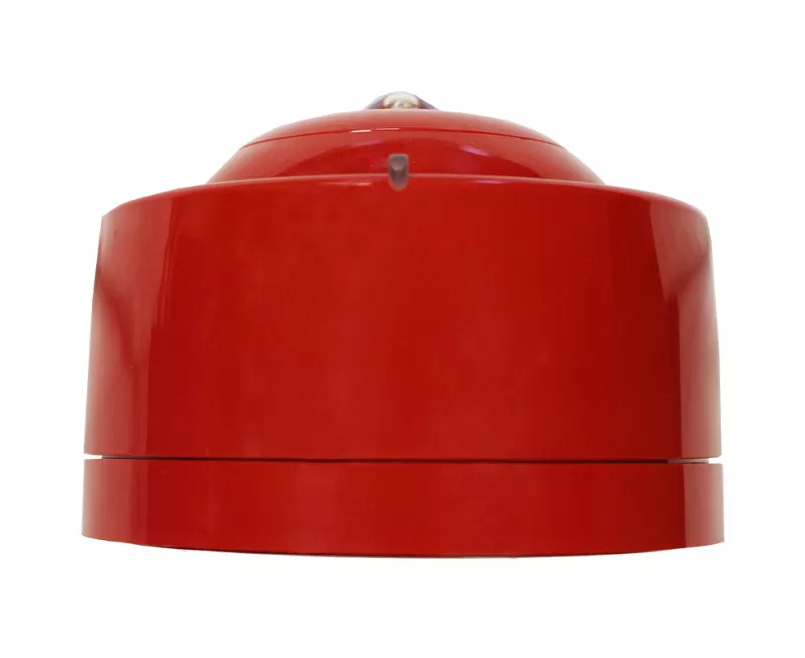

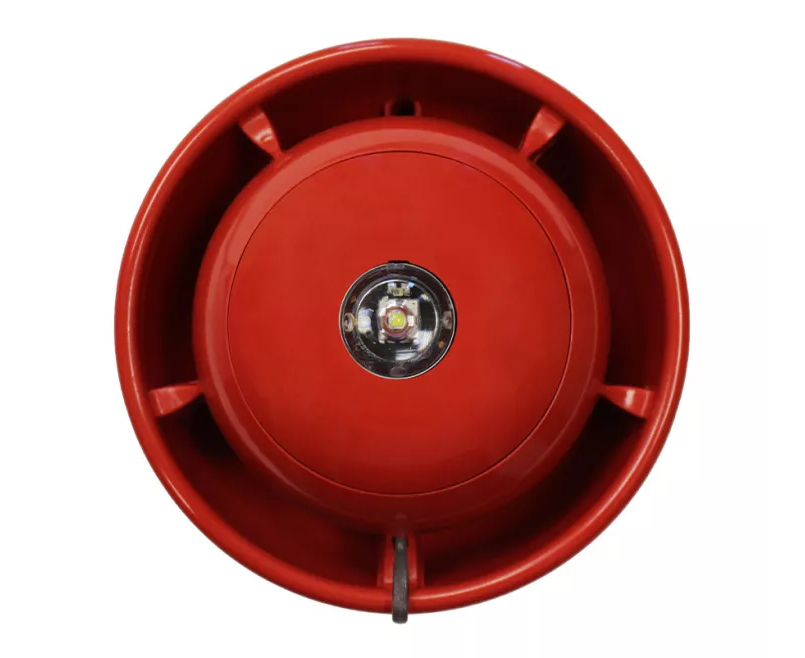

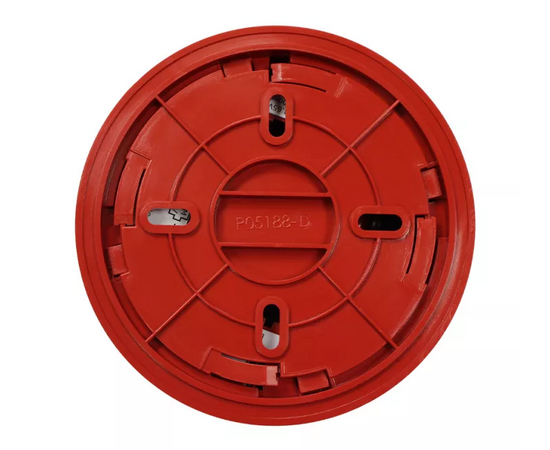

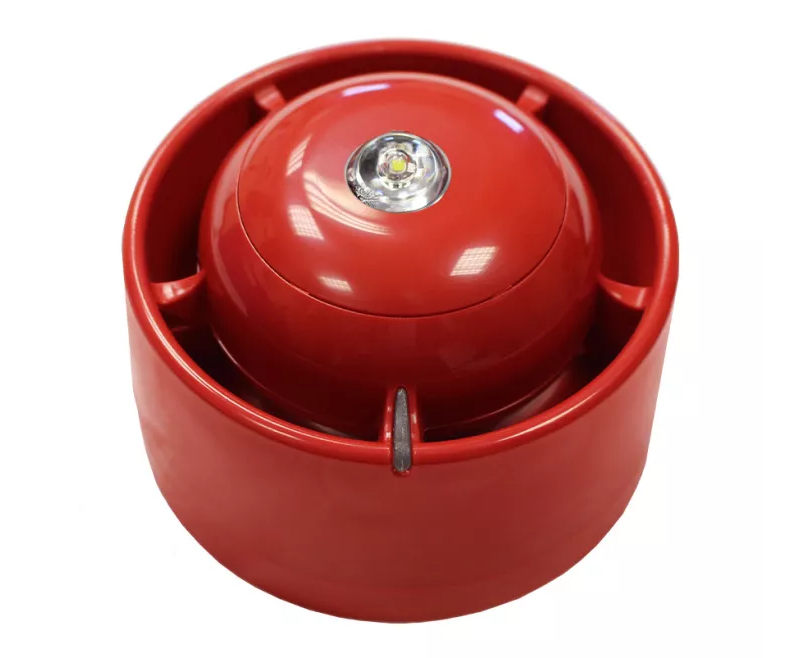

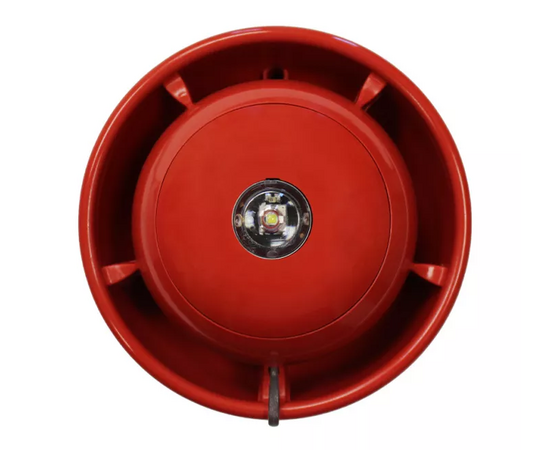

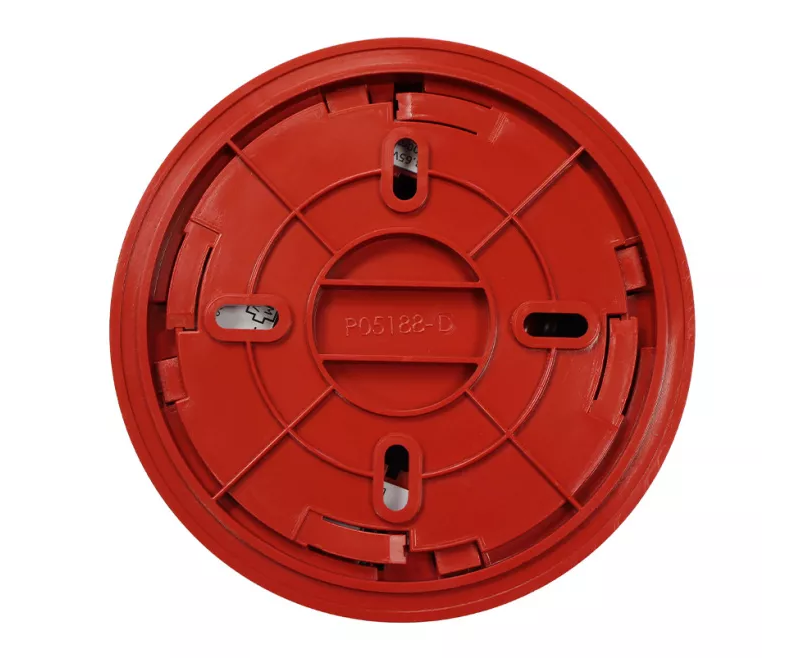

The SmartCell SC-33-0110-0001-99 Red Ceiling Sounder Beacon (Red flash) is quick and easy to install and offers individual addressing at the SmartCell Control Panel.
Features include part 23 VAD, 32 sounder tones, bidirectional 868 MHz communication and an anti-tamper locking mechanism.
This device is third party certified and compatible with the full SmartCell product range.
Key Features of the SC-33-0110-0001-99 |
|---|
| > Fully wireless > Quick and easy to install > Includes part 23 VAD > 32 sounder tones > Unique design > Inbuilt locking mechanism |
Product Specification for EMS SmartCell Wireless Ceiling Mounted Sounder VAD (Red Body / Red Flash) (SC-33-0110-0001-99)
| Wireless frequency | 868 MHz |
| Batteries | 3 x ER14505M 3.6 V lithium thionyl chloride batteries (Fanso or Titus) |
| Sounder | |
| Output level | 92 dB(A) at 1 m max. |
| Output level adjustment | High or low |
| Selectable tones | 32 |
| VAD | |
| Colour | Red flash |
| Rating | Category C-3-9.5 |
| Flash frequency | 0.5 Hz (1 flash, every 2 seconds) |
| Physical dimensions | 110 x 79 mm (Ø x D) |
| Net weight | 0.2 kg |
| Colour | Red |
| Mounting type | Ceiling mount |
| Mounting position | Ceiling |
| Operating temperature | -10 to +55°C |
| Storage temperature | -10 to +30°C (with batteries) |
| -10 to +55°C (without batteries) | |
| Relative humidity | 95% noncondensing max. |
| Environment | Indoor |
| IP rating | IP21C |
| Compliance | CE |
| Certification | CPR |
| Standards | EN54-3 EN54-13 EN54-23 EN54-25 |
More information about EMS SmartCell Wireless Ceiling Mounted Sounder VAD (Red Body / Red Flash) (SC-33-0110-0001-99)
More Information
| Brand | EMS |
|---|---|
| Manufacturer Part No. | SC-33-0110-0001-99 |
| Primary Power Source | Longlife Batteries (Lithium) |
| System Type | Wireless |
| Protocol Compatibility | SmartCell |
| Colour | Red |
| Warranty | 1 Year |
