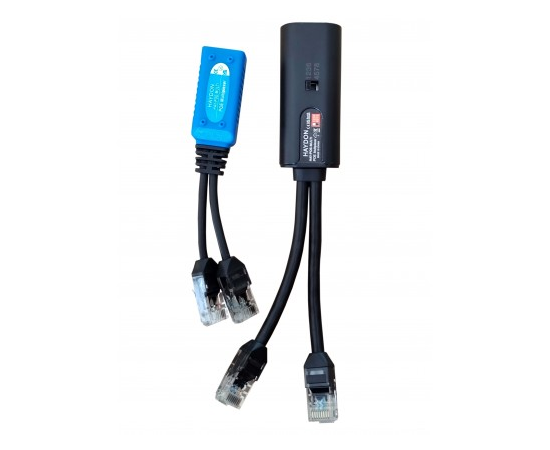

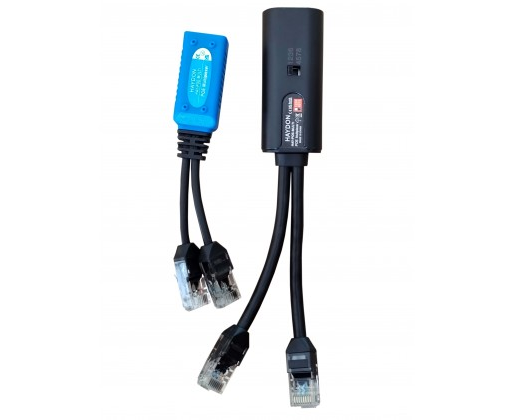

Haydon HAY-POE-MULTI PoE Multiplexer
The Haydon HAY-POE-MULTI PoE Multiplexer is a simple and cost-effective solution for connecting two IP cameras or PoE network devices using a single Cat5e or Cat6 cable. By combining two PoE connections onto one network cable, it reduces installation time, minimises cabling requirements and lowers installation costs, making it ideal for CCTV upgrades and new IP surveillance installations.
The kit includes both a transmitter and a receiver, providing true plug-and-play installation. Simply connect the receiver to a compatible PoE switch or NVR, run a single Cat5e/Cat6 cable to the camera location, and connect the transmitter to two PoE devices using short patch leads. The system supports cable runs of up to 100 metres, allowing two cameras to share a single network cable without the need for additional power supplies or PoE injectors.
Compatible with both IEEE 802.3af and IEEE 802.3at PoE standards, the HAY-POE-MULTI automatically adapts to Type A and Type B PoE pin configurations. It can provide up to 15.4W per device when used with IEEE 802.3af and up to 25.5W per device with IEEE 802.3at PoE+, making it suitable for a wide range of IP cameras and network devices. It is also compatible with Hikvision and Dahua PoE NVRs that use 12/36 pin PoE.
The Haydon HAY-POE-MULTI is an ideal solution where installing a second network cable is impractical or expensive, allowing installers to maximise existing cabling infrastructure while maintaining reliable PoE and network connectivity.
Key Features
- Connects two IP cameras or PoE devices using a single Cat5e/Cat6 cable
- Includes one transmitter and one receiver
- Supports cable runs up to 100 metres
- Compatible with IEEE 802.3af and IEEE 802.3at PoE standards
- Delivers up to 15.4W per device (802.3af)
- Delivers up to 25.5W per device (802.3at PoE+)
- Automatic Type A and Type B PoE compatibility
- Plug-and-play installation
- No additional power supply or PoE injector required
- Compatible with most standard PoE NVRs
- Reduces installation time and cabling costs
