Haydon HAY-WSA3 A3 CCTV Warning Sign
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

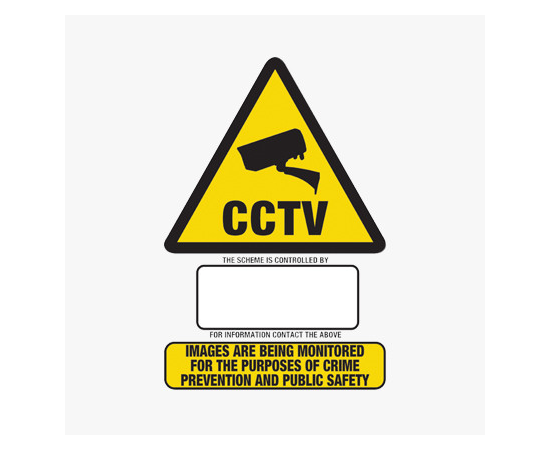

Haydon HAY-WSA3 A3 CCTV Warning Sign

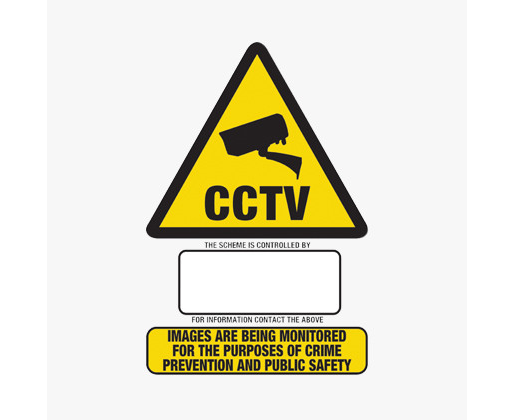

The Haydon HAY-WSA3 is a high-visibility A3 CCTV warning sign designed to clearly inform staff, visitors and members of the public that CCTV surveillance is in operation. Its large format makes it ideal for entrances, perimeter fencing, car parks, warehouses, schools, industrial sites and commercial premises where maximum visibility is required. The sign also supports compliance with UK data protection requirements by providing space to display the CCTV operator's name and contact details.
Manufactured from durable rigid plastic, the HAY-WSA3 features a bold black and yellow design that is easy to read from a distance. Suitable for both indoor and outdoor use, it provides a professional and highly visible way to notify visitors that CCTV monitoring is in place while reinforcing the presence of your security system.
The larger A3 size makes this warning sign particularly well suited to locations where signage needs to be clearly visible from further away, helping to deter unauthorised activity and ensuring visitors are aware they are entering an area protected by CCTV surveillance.
Key Features:
- A3 CCTV warning sign
- Designed to support UK data protection requirements
- Space to add the CCTV operator's name and contact details
- High-visibility black and yellow design
- Durable rigid plastic construction
- Suitable for indoor and outdoor use
- Ideal for entrances, gates, fences, warehouses and car parks
- Dimensions: 297 x 420mm (A3)
- Suitable for domestic, commercial and industrial CCTV installations
