Hikvision 4MP Acusense 4 Channel IP CCTV Kit Builder
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

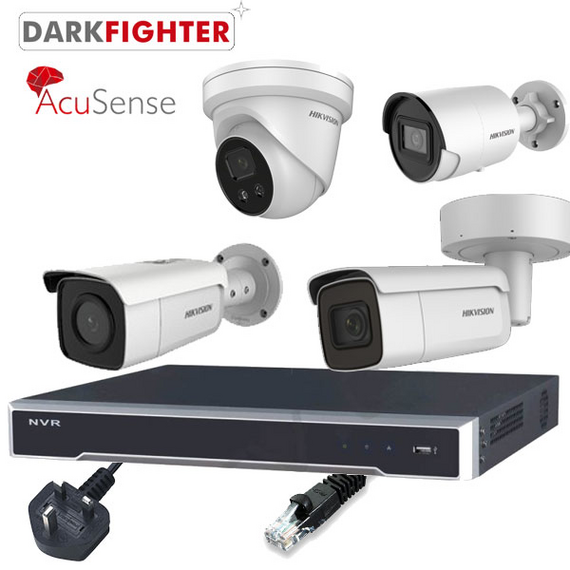

Hikvision 4MP Acusense 4 Channel IP CCTV Kit
This kit contains the 4MP Acusense series of cameras from Hikvision. These cameras have enhanced analytics with up to a 70% reduction in false alarms over their none Acusense counterparts. The sensors are super low lux rivalling the darkfighter series.
Hikvision DS-7604NI-K1-4P 4K capable 4 channel NVR with 4 port POE - Upto 8MP
HD Input
- H.265/H.264/H.264+ video formats
- Connectable to the third-party network cameras
- 4 IP cameras can be connected
- Recording at up to 8 MP resolution
- Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
HD Output
- HDMI/VGA outputs provided
- HDMI Video output at up to 4K (3840 × 2160) resolution
HD Storage
- 1 SATA interfaces connectable for recording and backup
- Storage space effectively saved by 50% to 70% with the use of H.264+ decoding format
Hikvision DS-2CD2046G2-IU 4MP AcuSense Darkfighter Mini Bullet with built-in microphone
- Excellent low-light performance with powered-by-DarkFighter technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- False alarm reduction through human and vehicle target classification based on deep learning
- -U: built-in microphone for real-time auto security
- -IU: Water and dust resistant (IP66); -I: Water and dust resistant (IP67)
- 3D DNR technology delivers clean and sharp images
Hikvision DS-2CD2346G2-IU 4MP Turret Network Camera New AcuSense Technology with Mics
- 3 axis mount
- Up to 30m IR distance
- 6 analytics
- IP66 weatherproof
- 120dB wide dynamic range
- Supports on board storage (up to 128GB)
- Built-in microphone for real-time audio security
Hikvision DS-2CD2T46G2-2I 4MP IP Bullet Network Camera New AcuSense Technology
- 2.8mm fixed lens
- Up to 30m IR distance
- 4 analytics
- Face Capture
- Smart motion detection
- 120dB wide dynamic range
- Supports on board storage (up to 256GB)
- NO Audio - Check ISU/SL Model
- Vandal resistant up to IK10
Hikvision DS-2CD2T46G2-4I 4MP IP Bullet Network Camera New AcuSense Technology 80m IR 2.8mm lens
- High quality imaging with 4 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Clear imaging against strong backlight due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle targets classification based on deep learning
- Water and dust resistant (IP67
Hikvision DS-2CD2146G2-ISU 4MP IP Dome Network Camera New AcuSense Technology with mic
- 2.8mm fixed lens
- Up to 30m IR distance
- 4 analytics
- Face Capture
- Smart motion detection
- Internal use
- 120dB wide dynamic range
- Supports on board storage (up to 256GB)
- Built-in microphone for real-time audio security
- Vandal resistant up to IK10
Hikvision DS-2CD2646G2-IZS AcuSense 4MP motorized varifocal lens Darkfighter bullet camera with IR
- 2.8-12mm motorized varifocal lens
- Triple stream
- Up to 60m IR distance
- 4 analytics
- IP66 weatherproof
- 120dB wide dynamic range
- Supports on board storage (up to 256GB)
Hikvision DS-2CD2H46G2-IZS 4 MP IR Varifocal Acusense Turret IP Camera
- 2.8 - 12mm motorized varifocal lens
- Triple stream
- Up to 40m IR distance
- 4 analytics
- Face Capture
- Smart motion detection
- IP66 weatherproof
- 120dB wide dynamic range
- Supports on board storage (up to 256GB)
- Audio line in & alarm I/O
- Vandal resistant up to IK10
Acusense Demo
