Hikvision DS-1275ZJ Pole mount
These products can only be purchased by trade installers as per manufacturers guidelines - if you are an installer you can sign up and request pricing HERE - (selecting trade account type)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

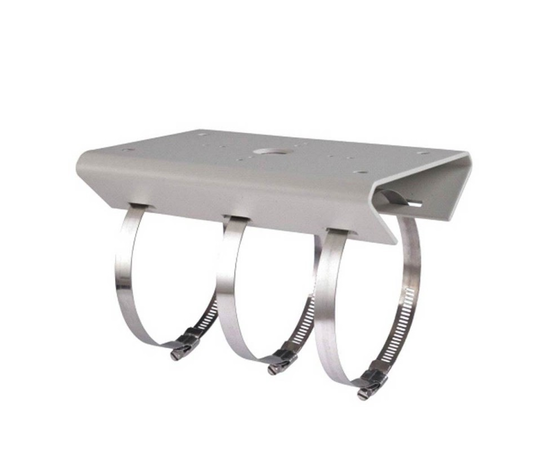

Hikvision DS-1275ZJ Pole Mount
The Hikvision DS-1275ZJ is a robust pole mounting bracket designed to enable compatible Hikvision cameras to be securely installed on poles, columns, and other vertical structures. It provides a reliable mounting solution when wall installation is not suitable, allowing cameras to be positioned in a flexible range of surveillance environments.
Constructed from steel and stainless steel components, the DS-1275ZJ offers excellent strength and durability for professional CCTV installations. Its Hikvision White finish provides a discreet and professional appearance, while the strong mounting design ensures reliable camera support in outdoor and commercial surveillance applications.
The pole mount is designed to work with compatible Hikvision wall mounting brackets, allowing installers to adapt standard wall-mounted camera brackets for pole installations. The adjustable clamp supports pole diameters from 67 mm to 127 mm, providing flexibility for a variety of mounting locations.
Key Features:
- Genuine Hikvision pole mounting bracket
- Designed for compatible Hikvision CCTV camera installations
- Allows wall brackets to be adapted for pole mounting applications
- Durable steel and stainless steel construction
- Hikvision White finish for a professional appearance

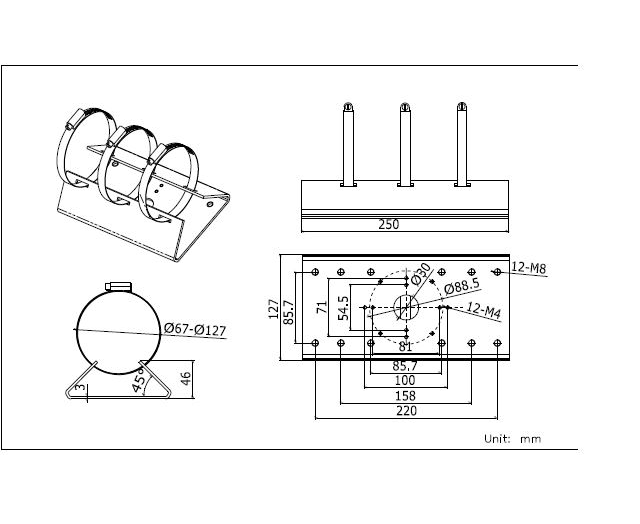

- Adjustable clamp diameter: 67 mm to 127 mm
- Suitable for poles, columns, and vertical structures
- Provides secure and stable camera positioning
- Ideal for outdoor surveillance installations
- Dimensions: 127 × 46 × 250 mm
- Weight: approximately 1.27 kg
- Maximum load capacity: up to 10 kg (installation dependent)
The Hikvision DS-1275ZJ Pole Mount is an ideal accessory for installers requiring a dependable solution for mounting cameras where traditional wall mounting is not possible. It provides installation flexibility, strong mechanical support, and a neat professional finish for a wide range of CCTV deployments.
Please note: When installing outdoors, appropriate waterproof sealing should be used. The supporting pole must be capable of carrying at least three times the combined weight of the camera and mounting accessories to ensure a safe installation.
