Hikvision DS-1696ZJ-Y3(OS) Stainless Steel Anti-Corrosion Pendant Mount
These products can only be purchased by trade installers as per manufacturers guidelines - if you are an installer you can sign up and request pricing HERE - (selecting trade account type)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

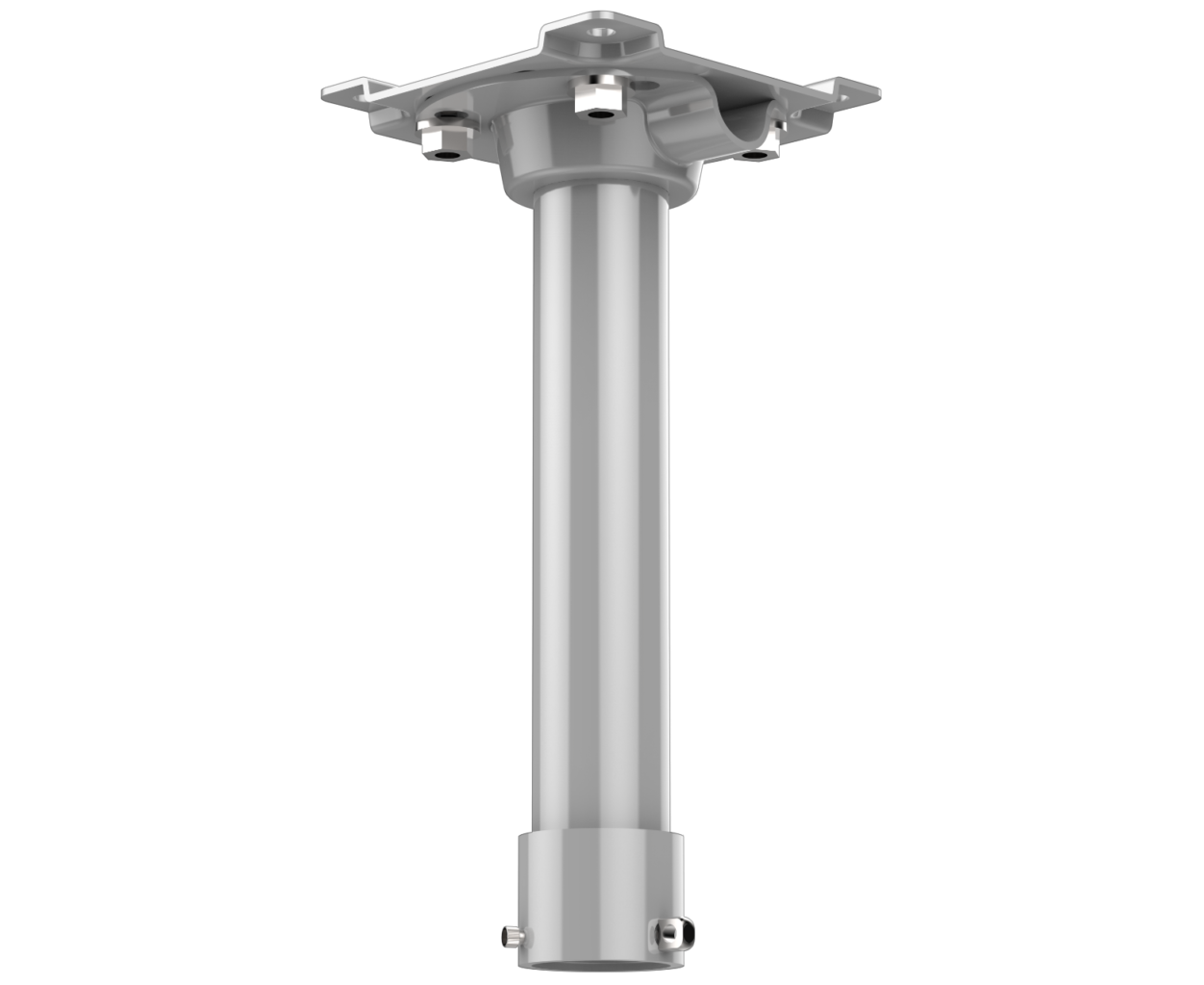

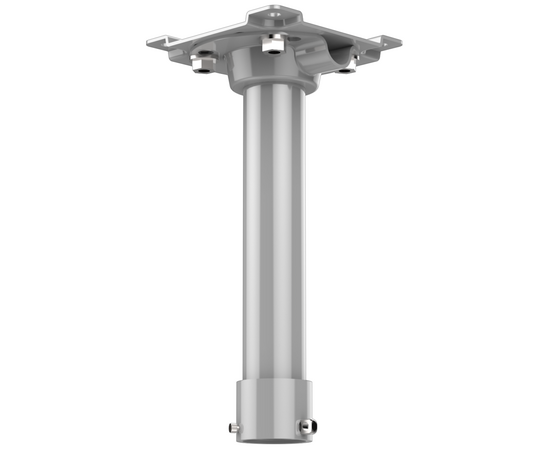

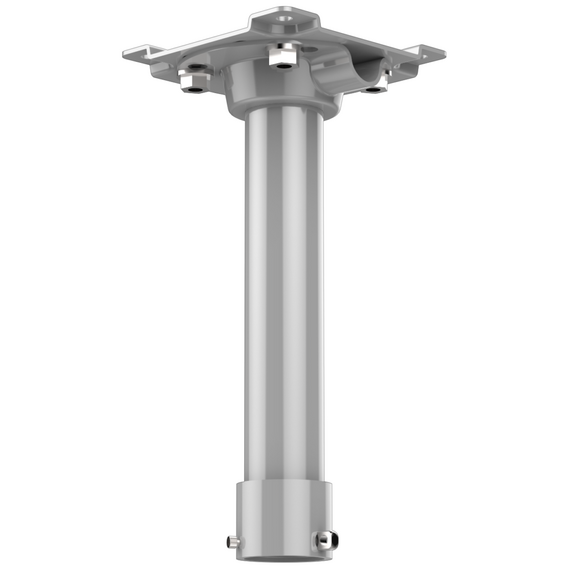

Hikvision DS-1696ZJ-Y3(OS) Stainless Steel Anti-Corrosion Pendant Mount
The Hikvision DS-1696ZJ-Y3(OS) is a professional pendant mounting bracket designed for Hikvision anti-corrosion camera systems. It provides a secure suspended mounting solution for compatible cameras, making it ideal for installations where ceiling or overhead mounting is required in harsh and demanding environments. The bracket is specifically designed for use with Hikvision explosion-proof and anti-corrosion camera series.
Manufactured from stainless steel with an anti-corrosion surface spray treatment, the DS-1696ZJ-Y3(OS) offers excellent resistance against moisture, salt air, and corrosive environmental conditions. Its durable construction makes it suitable for marine, coastal, chemical, industrial, and other challenging surveillance applications where standard mounting accessories may not provide sufficient protection.
The pendant mount features integrated cable outlet(s) to assist with neat cable routing and a clean professional installation. Its robust stainless steel construction provides a stable mounting platform while maintaining compatibility with Hikvision anti-corrosion camera solutions.
Key Features:
- Genuine Hikvision anti-corrosion pendant mounting bracket
- Designed for Hikvision explosion-proof and anti-corrosion camera series
- Stainless steel construction with anti-corrosion spray treatment
- High resistance to harsh outdoor and industrial environments
- Integrated cable outlet(s) for convenient cable management
- Suitable for marine, coastal, chemical, and industrial installations
- Natural/Silver stainless steel finish
- Provides secure and stable suspended camera mounting
- Dimensions: 160 × 160 × 331 mm
- Weight: approximately 1.89 kg
The Hikvision DS-1696ZJ-Y3(OS) Stainless Steel Anti-Corrosion Pendant Mount is an ideal accessory for professional surveillance installations requiring a durable overhead mounting solution in extreme environments. Its corrosion-resistant design and strong stainless steel construction help ensure long-term reliability for critical security applications.
Please note: The mount should be installed on a suitable structural surface capable of supporting the combined weight of the camera and mounting accessory. For outdoor installations, appropriate waterproof sealing should be used to help protect cable connections from moisture ingress.
