Hikvision DS-1697ZJ Anticorrosive Wall Mounting Bracket
These products can only be purchased by trade installers as per manufacturers guidelines - if you are an installer you can sign up and request pricing HERE - (selecting trade account type)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
**PLEASE NOTE THAT THIS ITEM IS MANUFACTURED TO ORDER AND IS NOT HELD IN STOCK. PLEASE CONTACT US FOR LEAD TIMES**

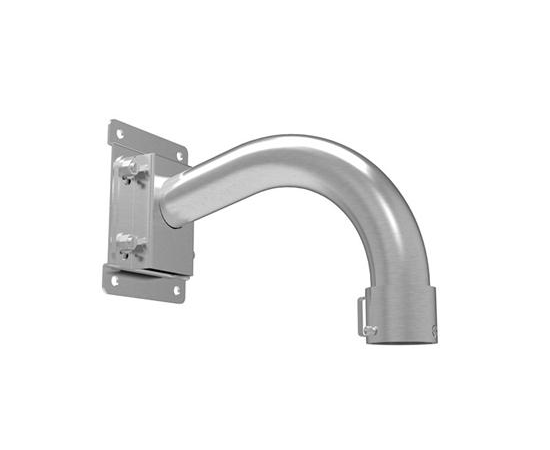

Hikvision DS-1697ZJ-X 316L Stainless Steel Wall-Mounting Bracket
The Hikvision DS-1697ZJ-X is a heavy-duty wall-mounting bracket designed for compatible Hikvision explosion-proof and anti-corrosion cameras.
Manufactured from high-grade 316L stainless steel with a protective surface treatment, the bracket offers excellent resistance to corrosion and demanding environmental conditions. Its integrated cable opening helps simplify cable routing and installation.
Suitable for indoor and outdoor applications, the DS-1697ZJ-X supports a maximum load of 15kg and should be installed on a strong, flat wall. Suitable waterproof sealing is required for outdoor installations.
Key Features:
- Genuine Hikvision wall-mounting bracket
- Designed for compatible explosion-proof and anti-corrosion cameras
- High-grade 316L stainless steel construction
- Protective surface treatment
- Natural stainless steel finish
- Integrated cable opening for easier installation
- Suitable for indoor and outdoor use
- Maximum load capacity of 15kg
- Suitable for demanding industrial environments
- Dimensions of approximately 136 × 204.3 × 353.4mm
- Approximate weight of 1.04kg
- Waterproof sealing required for outdoor installation
