Hikvision DS-1697ZJ-Y3(OS) Stainless Steel Anti-Corrosion Wall mount
These products can only be purchased by trade installers as per manufacturers guidelines - if you are an installer you can sign up and request pricing HERE - (selecting trade account type)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

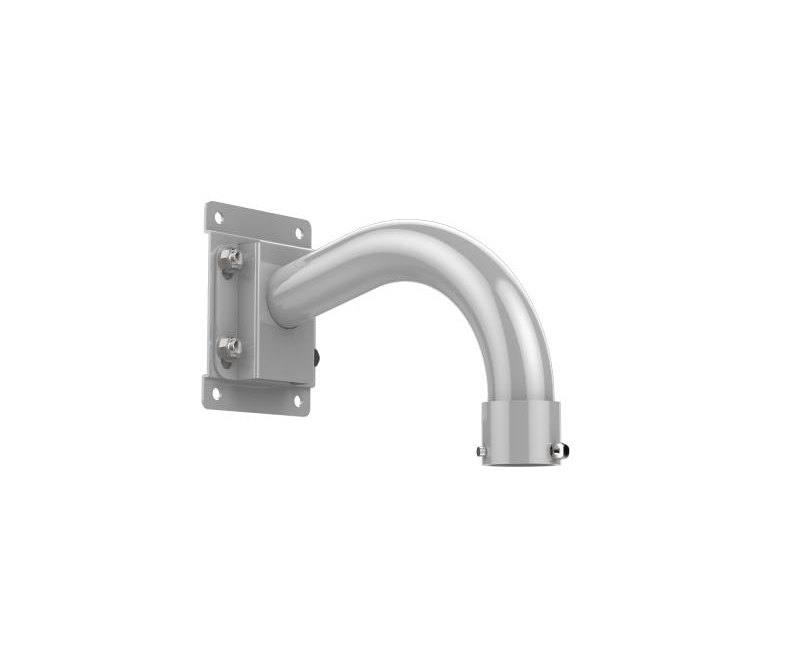

Hikvision DS-1697ZJ-Y3(OS) Stainless Steel Anti-Corrosion Wall Mount
The Hikvision DS-1697ZJ-Y3(OS) is a professional wall mounting bracket designed for Hikvision explosion-proof and anti-corrosion camera series. Built for harsh and demanding environments, it provides a secure and durable mounting solution for surveillance cameras installed in industrial, marine, coastal, chemical, and other locations where enhanced corrosion resistance is required.
Manufactured from 316L stainless steel, the DS-1697ZJ-Y3(OS) offers excellent resistance against corrosion, salt exposure, and aggressive environmental conditions. Its anti-corrosion design makes it suitable for challenging outdoor installations where standard camera mounts may not provide sufficient durability.
The bracket features an integrated safety rope design to assist with safer camera installation and maintenance. Its robust construction provides a stable mounting platform while maintaining compatibility with Hikvision anti-corrosion camera solutions.
Key Features:
- Genuine Hikvision anti-corrosion wall mount bracket
- Designed for Hikvision explosion-proof and anti-corrosion camera series
- Premium 316L stainless steel construction
- High resistance to corrosion and harsh environmental conditions
- Suitable for marine, coastal, industrial, and chemical environments
- Integrated safety rope for convenient installation
- Silver Moon Grey finish
- Strong and stable wall mounting design
- Suitable for demanding outdoor surveillance applications
- Dimensions: 126 × 222 × 328 mm
- Weight: approximately 2.307 kg
- Maximum load capacity: 8 kg
The Hikvision DS-1697ZJ-Y3(OS) Stainless Steel Anti-Corrosion Wall Mount is an ideal accessory for professional surveillance installations requiring long-term reliability in extreme environments. Its 316L stainless steel construction and corrosion-resistant design make it particularly suitable for critical infrastructure, offshore facilities, industrial sites, and perimeter security applications.
Please note: The mount should be installed on a flat and structurally suitable surface capable of supporting at least three times the combined weight of the camera and bracket. For outdoor installations, appropriate waterproof sealing should be used to help prevent moisture ingress.
