Hikvision DS-2AE4225T-D3(D) Internal Mini PTZ camera with 25X Optical Zoom
These products can only be purchased by trade installers as per manufacturers guidelines - if you are an installer you can sign up and request pricing HERE - (selecting trade account type)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

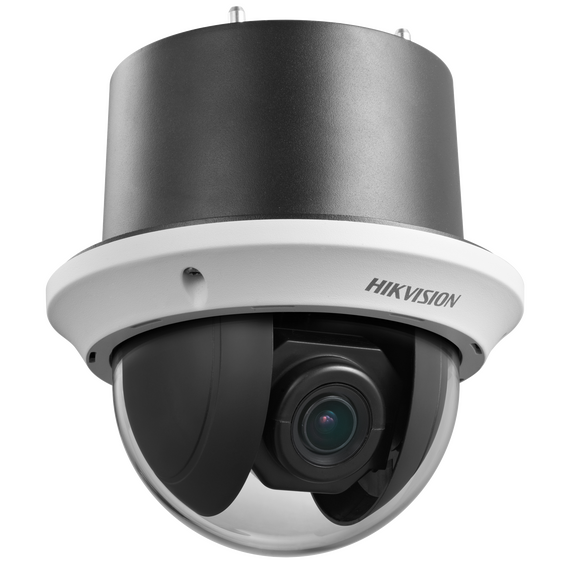

Hikvision DS-2AE4225T-D3 2MP Internal Mini PTZ Camera
The Hikvision DS-2AE4225T-D3 is a compact 2MP Turbo HD PTZ camera designed for monitoring larger indoor areas through an HD over coax CCTV system.
Powered by DarkFighter technology provides improved image quality in low-light environments, while 120dB Wide Dynamic Range helps maintain detail in scenes containing both bright and dark areas. Its powerful 25x optical zoom allows operators to examine distant people, objects and activity in greater detail.
The camera provides responsive pan, tilt and zoom control with 360° endless rotation, making it suitable for shops, warehouses, reception areas, public buildings and other spacious indoor locations requiring flexible surveillance coverage.
Key Features:
- 2MP Full HD 1080p resolution
- Powered by DarkFighter low-light technology
- 25x optical zoom
- 16x digital zoom
- 4.8mm to 120mm motorised zoom lens
- Full pan, tilt and zoom control
- 360° endless pan movement
- 120dB Wide Dynamic Range
- True day and night operation
- 3D Digital Noise Reduction
- Backlight and highlight compensation
- Privacy masking support
- Supports Turbo HD-TVI video output
- Switchable TVI, AHD, CVI and CVBS output
- 3D intelligent positioning
- Compact 4-inch mini speed dome design
- Designed for internal CCTV installations
- Suitable for shops, offices, warehouses and public buildings
