Hikvision DS-2CE79D0T-VFIT3F 2MP Varifocal Turret CCTV Camera
These products can only be purchased by trade installers as per manufacturers guidelines - if you are an installer you can sign up and request pricing HERE - (selecting trade account type)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
Hikvision DS-2CE79D0T-VFIT3F 2MP Varifocal Turret CCTV Camera

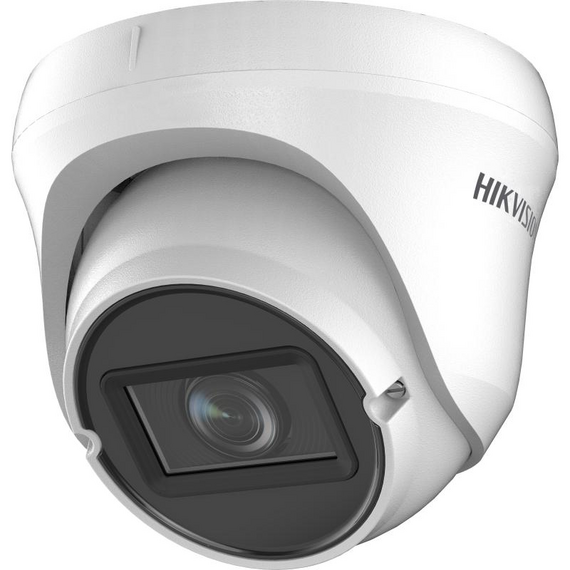

The Hikvision DS-2CE79D0T-VFIT3F is a high-performance 2MP Turbo HD turret camera designed to deliver crisp Full HD surveillance for both residential and commercial security applications. Featuring a manual 2.7–13.5mm varifocal lens, this camera allows installers to precisely adjust the viewing angle, making it ideal for monitoring entrances, car parks, warehouses, retail stores, offices, and perimeter areas.
With powerful infrared illumination providing up to 40 metres of night vision, the DS-2CE79D0T-VFIT3F delivers clear images around the clock, even in complete darkness. Its switchable TVI, AHD, CVI and CVBS video output ensures seamless compatibility with a wide range of DVR systems, making it an excellent choice for both new installations and CCTV upgrades.
Built to withstand harsh outdoor conditions, the IP67-rated weatherproof housing protects against rain, dust, and extreme temperatures, ensuring reliable operation all year round.
Key Features:
- Full HD 2MP (1920 × 1080) image resolution
- Adjustable 2.7–13.5mm manual varifocal lens
- Up to 40m Smart IR night vision
- Switchable TVI / AHD / CVI / CVBS video output
- Digital Wide Dynamic Range (DWDR) for improved image quality in challenging lighting
- 2D Digital Noise Reduction for cleaner images in low light
- IP67-rated weatherproof housing for indoor and outdoor installation
- 12V DC power supply
- Compatible with Hikvision Turbo HD DVRs and many third-party HD analogue recorders
