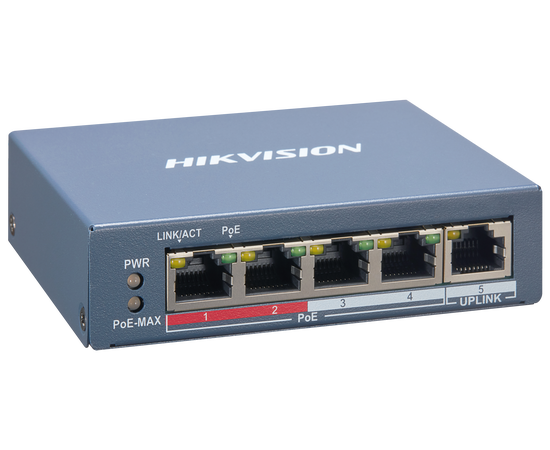

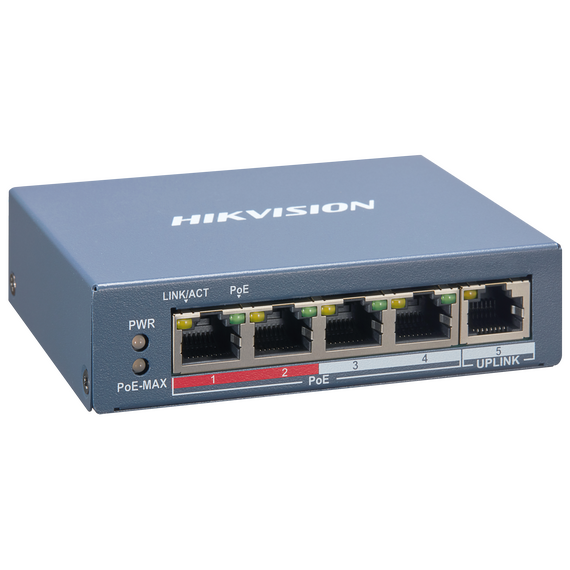

Hikvision DS-3E1105P-EI 4 Port PoE+ Switch (Smart Managed)
These products can only be purchased by trade installers as per manufacturers guidelines - if you are an installer you can sign up and request pricing HERE - (selecting trade account type)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

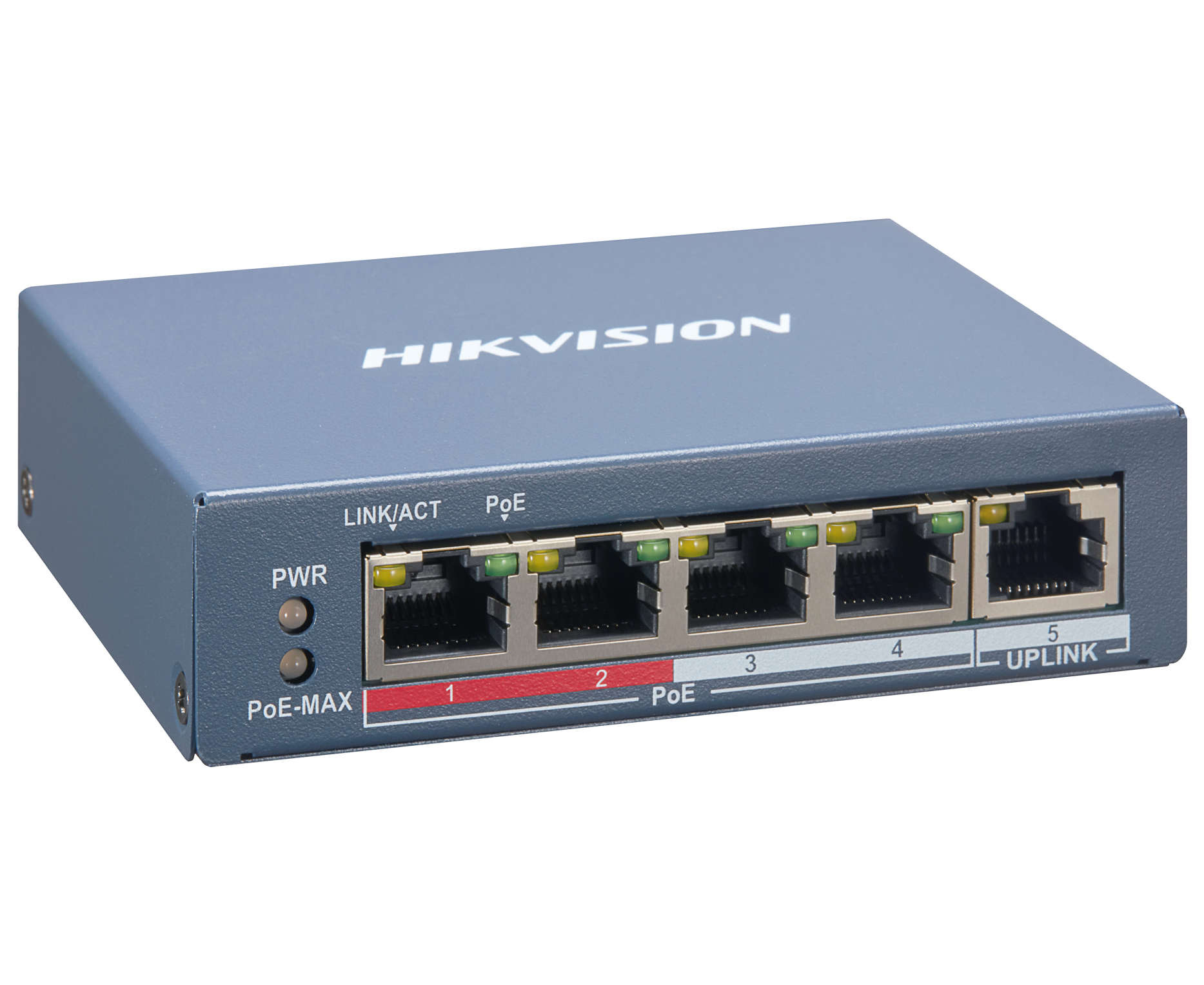

Hikvision DS-3E1105P-EI 4-Port Smart Managed PoE Switch
The Hikvision DS-3E1105P-EI is a compact smart managed PoE switch designed for small IP CCTV installations, providing four PoE camera ports and a separate network uplink connection.
It features 4 x 10/100Mbps PoE RJ45 ports plus 1 x 10/100Mbps RJ45 uplink, with a total PoE power budget of 60W. Each PoE port supports IEEE 802.3af/at and can supply up to 30W, making it suitable for a wide range of compatible Hikvision and third-party IP cameras.
Smart management features include network topology monitoring, alarm notifications, PoE watchdog, VLAN support, cable fault detection and network health monitoring. Extend Mode also supports PoE transmission distances of up to 300 metres with compatible equipment, making it especially useful for CCTV installations with longer cable runs.
Key Features:
- 4 x 10/100Mbps PoE RJ45 ports
- 1 x 10/100Mbps RJ45 uplink port
- 60W total PoE power budget
- Up to 30W PoE power per port
- IEEE 802.3af / 802.3at PoE support
- Smart managed network switch
- Network topology management
- Network health monitoring
- Real-time alarm notifications
- PoE watchdog for automatic camera recovery
- 802.1Q VLAN support
- STP / RSTP loop prevention
- Cable fault detection

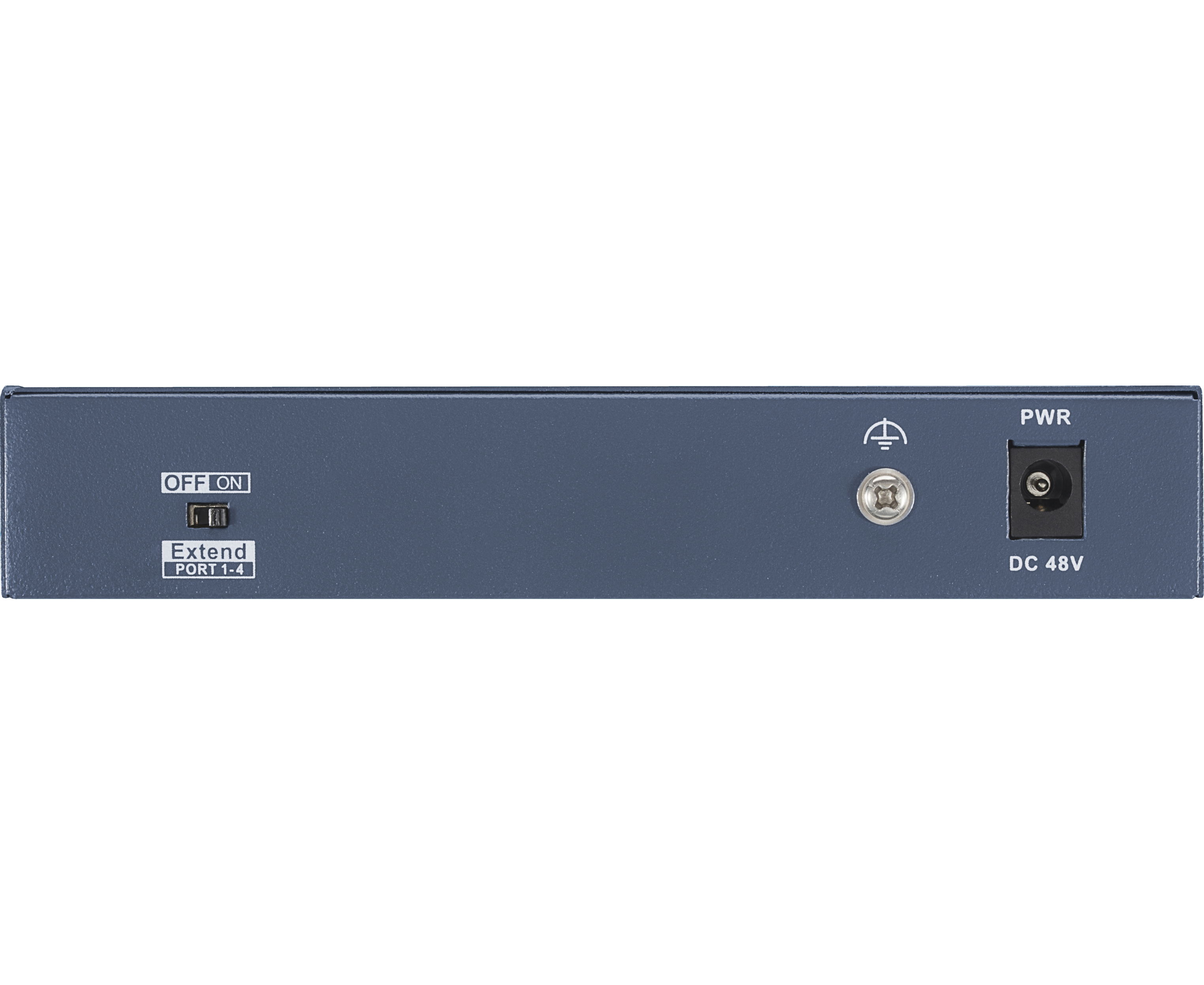

- Up to 300m PoE transmission in Extend Mode
- 6kV surge protection on PoE ports
- 1Gbps switching capacity
- 2K MAC address table
- Ideal for small IP CCTV systems
- Single 100Mbps Rj45 Port
- Extend Mode
