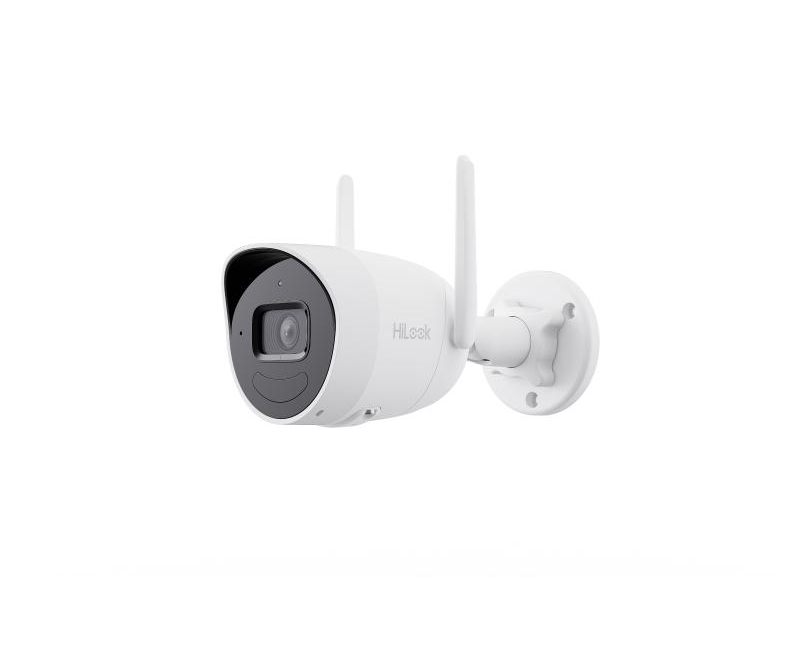

Name: Hikvision HiLook IPC-B140HA-D/W(W) 4MP Wifi IP Bullet Camera
SKU: IPC-B140HA-D/W(W)(2.8mm)
Price: 49.44 GBP
Availability: InStock

Write a review

CODE: IPC-B140HA-D/W(W)(2.8mm)

£49⁴⁴

£41²⁰ exc. VAT

14 item(s) available

+ −

Add to Quotation

Compact Wireless 4MP IP Bullet camera by Hilook.

Power supply included, can be wired or wireless - simply use the app to lock onto your wifi then add via any recorder inerface.

You can also use a micro SD card for onboard recording and stand alone operation with mobile viewing still.

CCTV Lens Guide

Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:

Lens in mm	Approx Viewing Angle (degrees)	Ideal Distance (metres)	Typical usage/notes
2.8	106	<6	For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out"
3.6/4	83-90	<12	A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom"
6	56	6-20	Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up
12	24	20+	Zooms in significantly more to look at a gate, entrance or adjascent building
16	19	24+	As above but more so

Hard Drive Size Guide

The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).

Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).

Resolution (Megapixels)	Days of storage provided by 1TB per camera (continuous - full 25 frames per second)	Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second)	Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second)
1	44	11	36
2	22	5	18
3	17	4	14
4	11	3	9
5	9	2	8
6	8	2	6
8 (4K)	5	1	4
12	4	0.5	3

As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.

(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)

You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...

(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
