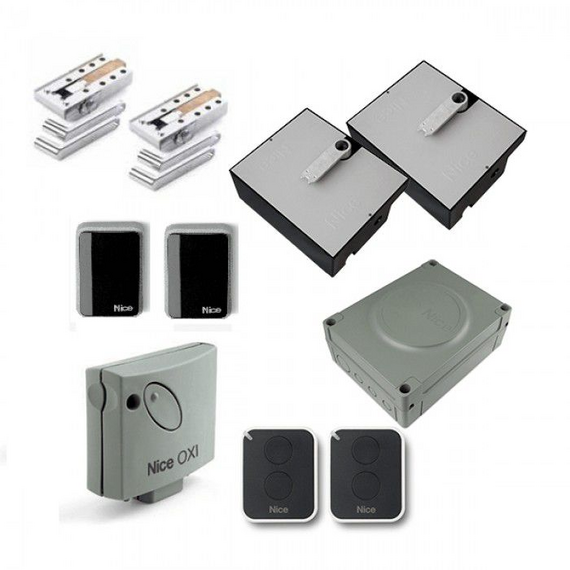

Nice B-FAB5024-DKIT Heavy-Duty Underground Swing Gate Automation Kit (24V DC) for Double Gates up to 5m / 900kg
The Nice B-FAB5024-DKIT (also known as Big-FAB kit) is one of the most powerful underground swing gate automation systems in the Nice range, designed for extremely heavy and large gate installations where both strength and aesthetics are required. It uses 24V DC electromechanical gear motors installed in underground foundation boxes, allowing the entire system to remain completely hidden while maintaining a clean architectural appearance. The motors are equipped with magnetic encoders and mechanical limit switches to ensure precise movement, accurate stopping positions, and reliable obstacle detection. Built for intensive and semi-industrial use, the system can handle gate leaves up to 5 metres in length and up to 900kg per leaf, making it suitable for estates, industrial entrances, apartment complexes, and high-traffic properties.
KEY FEATURES:
- Heavy-duty underground swing gate automation kit
- Suitable for double gates up to 5m per leaf
- Supports gate weight up to 900kg per leaf
- 24V DC electromechanical underground motor system
- Magnetic encoder for precise positioning control
- Mechanical limit switches for reliable stopping
- Fully concealed underground installation
- BlueBUS technology for simplified wiring and accessories
- MC824H advanced control unit
- Built-in obstacle detection and safety reversal
- Semi-intensive duty cycle (~45 cycles/hour)
- Optional 360° opening capability (installation dependent)
