NICE HYKEHS-DKIT High-Speed Articulated Arm Double Swing Gate Automation Kit
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

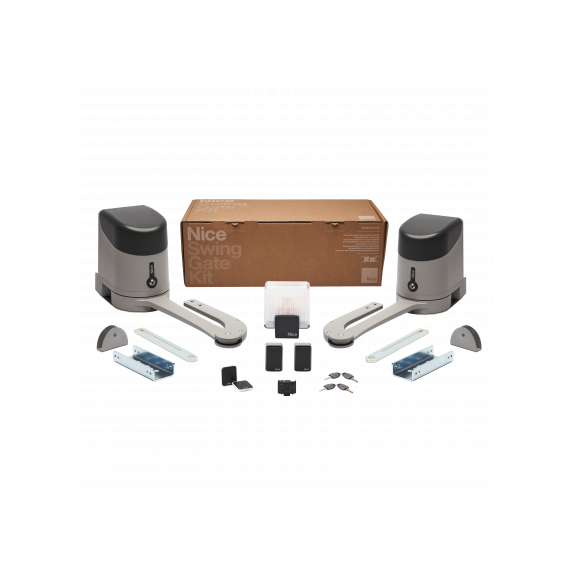

NICE HYKEHS-DKIT High-Speed Articulated Arm Double Swing Gate Automation Kit
The Nice HYKEHS-DKIT is a complete high-speed automation solution for double swing gates, combining performance, reliability, and advanced safety features. Designed for residential and multi-residential installations, this kit is ideal for gates mounted on large pillars where traditional linear operators may not be suitable. Powered by 24V DC electromechanical motors with articulated arms and magnetic encoder technology, the system ensures smooth and precise movement with exceptional positioning accuracy. The high-speed operation allows gates to open up to 90° in approximately 10 seconds, reducing waiting times and improving convenience
KEY FEATURES:
- High-speed opening – 90° opening in approximately 10 seconds
- Suitable for double swing gates up to 3m long or 270kg per leaf
- Powerful 24V DC electromechanical articulated arm motors
- Magnetic encoder for precise positioning and reliable operation
- 500Nm peak torque for demanding installations
- Dual obstacle detection technology for improved safety
- Adjustable articulated arms for installation flexibility
- Integrated control unit with self-learning functionality
- Built-in opening and closing limit switches
- Durable aluminium body with weather-resistant polyester coating
- Optional PS124 battery backup compatibility
- Solar power compatibl
