Nice M5BAR-KIT Automatic Barrier Gate System (24V DC) for Up to 5m Boom Arm
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

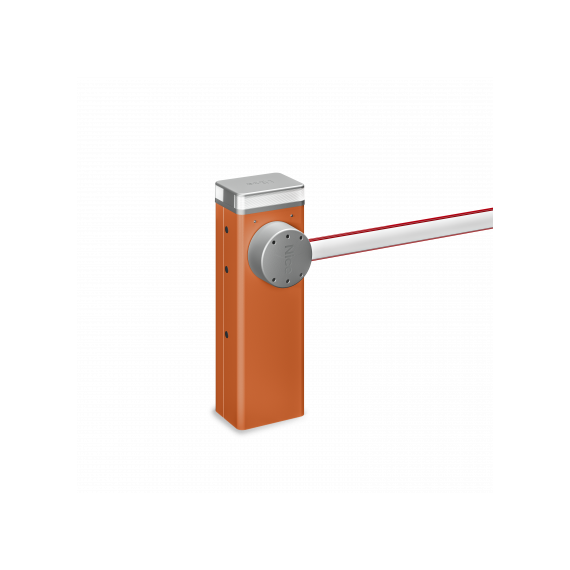

Nice M5BAR-KIT Automatic Barrier Gate System (24V DC) for Up to 5m Boom Arm

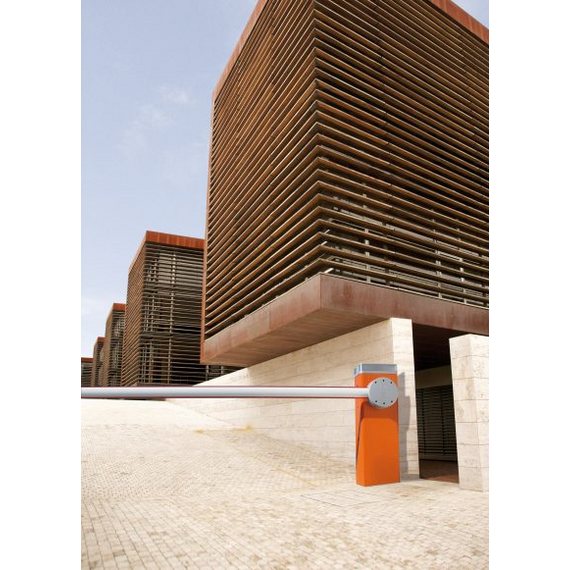

The Nice M5BAR-KIT is a professional-grade automatic barrier system designed for high-traffic vehicle access control in commercial, industrial, and residential environments. It is engineered to manage efficient entry and exit flow using a 24V DC electromechanical motor with an integrated control unit housed inside the barrier body. This model supports boom arms up to 5 meters, making it suitable for wider lanes such as parking entrances, logistics hubs, gated communities, and industrial sites. The system is built for intensive-duty operation, typically handling up to ~350 cycles per hour depending on configuration. The M5BAR features a robust steel housing with cataphoresis anti-corrosion treatment and a modular boom arm system for easy installation and maintenance. Its elliptical boom design improves wind resistance and stability during operation.
KEY FEATURES:
- Automatic barrier gate system for up to 5m boom arm
- 24V DC electromechanical motor with integrated control unit
- High-speed opening (approx. 3–6 seconds)
- Intensive-duty cycle for high traffic environments
- Steel housing with anti-corrosion cataphoresis coating
- Elliptical boom arm for improved wind resistance
- BlueBUS / loop detector compatibility (LP21/LP22)
- Built-in obstacle detection and safety reversal
- Encoder-based movement control for accuracy
- Adjustable speed, torque, and auto-close settings
- Master/slave dual barrier synchronization support
- Modular boom system for easy installation
- Energy-efficient standby mode
- Battery backup compatible (PS224 optional)
- Suitable for commercial, industrial, and parking access control
