Nice ROBUS500HS-KIT High-Speed Sliding Gate Automation Kit (24V DC) up to 500kg
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

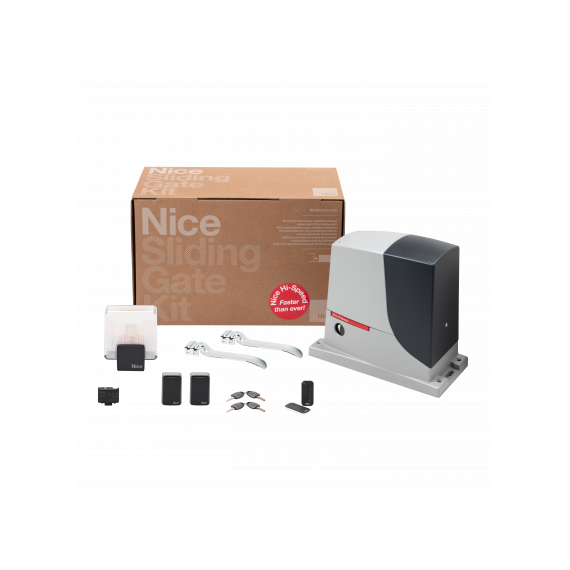

Nice ROBUS500HS-KIT High-Speed Sliding Gate Automation Kit (24V DC) up to 500kg
The Nice ROBUS500HS-KIT is a premium high-speed sliding gate automation system designed for smooth, fast, and reliable operation of medium-duty gates. Built with a powerful 24V DC electromechanical gear motor, it is capable of handling sliding gates up to 500kg with consistent performance even under intensive daily use. This system is part of Nice’s Hi-Speed range, delivering significantly faster opening speeds compared to standard sliding motors. A typical 4m gate can open in approximately 9–10 seconds under standard installation conditions, improving convenience and reducing waiting time at entry points. The integrated control unit ensures intelligent operation with features such as obstacle detection, automatic travel programming, adjustable acceleration and deceleration, and self-diagnostics. The BlueBUS system simplifies installation by allowing accessories such as photocells and safety devices to connect using only two wires.
KEY FEATURES
- High-speed sliding gate automation kit
- Suitable for gates up to 500kg
- 24V DC electromechanical gear motor
- Fast operation: ~9–10 seconds for 4m gate
- Integrated control unit with smart programming
- BlueBUS technology for simple wiring (2-wire system)
- Magnetic limit switch system
- Intensive-duty cycle for frequent operation
- Built-in obstacle detection and auto-reverse
- Adjustable acceleration and deceleration
- Self-learning travel programming
- Non-reversible motor for added security
