Nice RUN2500I-KIT High-Speed Sliding Gate Automation Kit (24V DC Inverter Drive) up to 2500kg
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

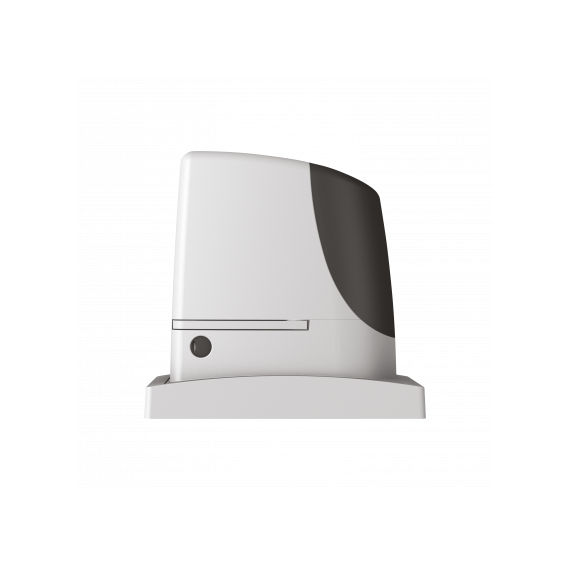

Nice RUN2500I-KIT High-Speed Sliding Gate Automation Kit (24V DC Inverter Drive) up to 2500kg
The Nice RUN2500I-KIT is the most advanced version of the RUN 2500 series, designed for extreme-duty sliding gate automation where maximum control, smooth motion, and heavy load capacity are required. It is engineered for industrial entrances, logistics hubs, and high-security perimeter gates. Unlike standard RUN models, the “I” version includes an integrated inverter, which allows precise control of motor speed by adjusting the power frequency. This enables smoother acceleration, finer deceleration control, and improved torque management—especially under heavy load conditions. The system is powered by a 24V DC electromechanical motor with an integrated control unit, capable of handling sliding gates up to 2500kg. The inverter technology also enables variable speed control (typically around 8.2 to 15.4 m/min depending on configuration), ensuring optimized performance for both light and heavy movement phases.
KEY FEATURES:
- Ultra heavy-duty sliding gate automation kit
- Supports gates up to 2500kg
- 24V DC electromechanical motor with inverter drive
- Variable speed control via integrated inverter
- BlueBUS 2-wire accessory connection system
- Smooth acceleration and deceleration control
- High torque performance with inverter boost
- Thermal adaptive force control system
- Ventilated motor for continuous industrial use
- Built-in obstacle detection and auto-reverse safety
- Self-learning travel programming
- Master/slave dual motor synchronization support
- Non-reversible motor for secure locking
