NICE TITAN3724HS-DKIT High-Speed Double Swing Gate Automation Kit
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
NICE TITAN3724HS-DKIT High-Speed Double Swing Gate Automation Kit

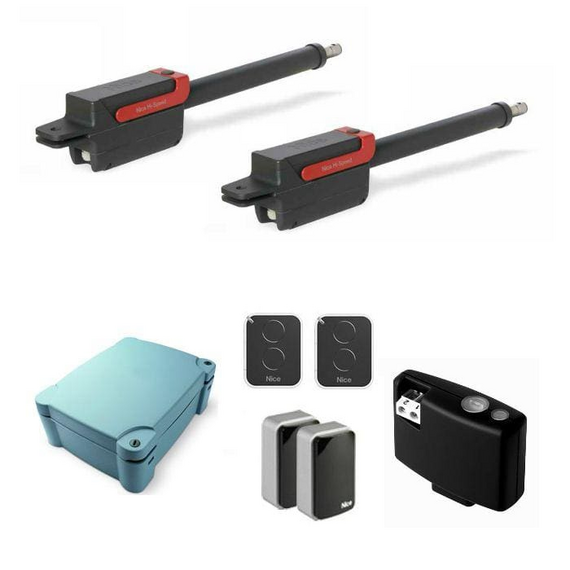

The NICE TITAN3724HS-DKIT is a premium high-speed automation system engineered for residential, commercial, and industrial swing gates requiring fast, reliable, and intensive-duty operation. Featuring two TITAN TTN3724HS electromechanical gear motors powered by 24V DC technology, the kit delivers exceptional performance with a rapid 90° opening time of approximately 12 seconds. Equipped with advanced magnetic encoder technology, the system ensures precise gate positioning, consistent performance, and accurate obstacle detection for enhanced safety. The surface-mounted design allows straightforward installation, while the robust construction is suitable for gates up to 3.7 meters long or 450 kg per leaf
KEY FEATURES:
- High-speed double swing gate automation kit
- Suitable for gates up to 3.7 m per leaf
- Supports gate weights up to 450 kg per leaf
- Rapid 90° opening in approximately 12 seconds
- 24V DC electromechanical gear motors
- Magnetic encoder for precise positioning
- Advanced obstacle detection technology
- Intensive-duty operation
- Surface-mounted installation
- MC824H Moonclever intelligent control unit
- Nice BlueBUS compatible accessories
- Automatic fault diagnostics
- Self-learning opening and closing limits
- Adjustable pause time programming
- Pedestrian access function
